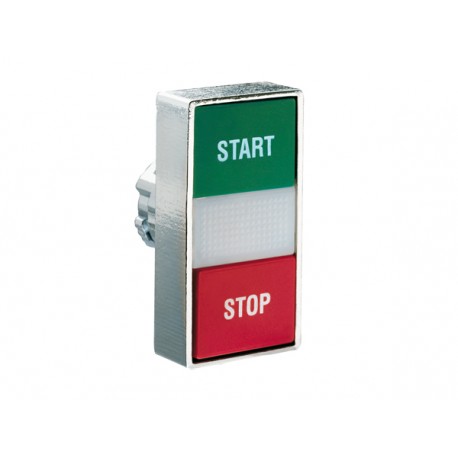

LOVATO ELECTRIC 8LM2TBL7114 8LM2TBL7114 LM2TBL7114 LOVATO DOUBLE-TOUCH ACTUATOR, SPRING RETURN, WHITE INDICATOR, Ø22MM 8LM METAL SERIES,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TBL7114 LM2TBL7114 LOVATO DOUBLE-TOUCH ACTUATOR, SPRING RETURN, WHITE INDICATOR, Ø22MM 8LM METAL SERIES,..

8LM2TBL7114

LM2TBL7114

LOVATO ELECTRIC

1 Pcs.

DOUBLE-TOUCH ACTUATOR, SPRING RETURN, WHITE INDICATOR, Ø22MM 8LM METAL SERIES, 2 FLUSH PUSH BUTTONS. BOTH SPRING RETURN, WHITE - BLACK Double Metallic Luminous Pushbutton with 2 white/black flush pushbuttons Double-touch actuator, spring return, white indicator, Ø22mm 8LM series metal, 2 flush pushbuttons. Both spring return, White - Black

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 8LM2TBL7114 LM2TBL7114 LOVATO DOUBLE-TOUCH ACTUATOR is a specialized control element used to save panel space while providing multiple command functions in a single operator cutout. Operators utilize these dual-button units for combined start and stop operations on complex industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP40
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TBL7114

Double-touch actuator, spring return, white indicator, Ø22mm 8LM series metal, 2 flush pushbuttons. Both spring return, White - Black

Technical specifications

Colour:
White/Black
Order code8LM2TBL7114
Weight [g]47
Qty. per package5
Multiple qty. of packs per order5
Package dimensions [mm]065X046X090
Volume [cm³]53.82
Bar code [EAN13]8013975144442
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
