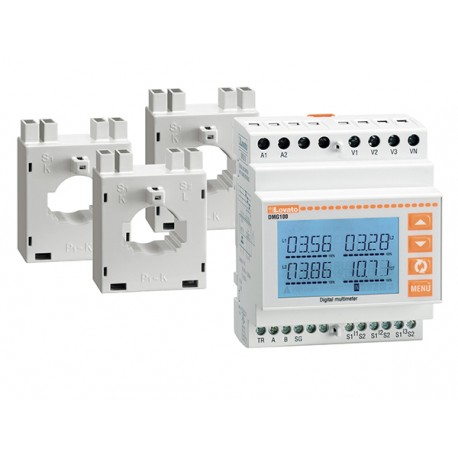

LOVATO ELECTRIC DMGKIT100150 DMGKIT100150 LOVATO DIGITAL MULTIMETER DMG100 + 3 CT 150A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMGKIT100150 LOVATO DIGITAL MULTIMETER DMG100 + 3 CT 150A

DMGKIT100150

DMGKIT100150

LOVATO ELECTRIC

1 Pcs.

DIGITAL MULTIMETER DMG100 + 3 CT 150A Composed of one DMG100 multimeter and N° 3 CTs 150/5A for Ø23mm/0.91” cable

Automation > Multifunction measuring instrument
Metering instruments and current transformers - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric DMGKIT100150 digital multimeter kit packages advanced measurement hardware with current transformers for comprehensive power monitoring. Industrial technicians use these bundled kits to measure electrical loads accurately in switchboard assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP), front side (EF003118): IP40
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Display (EF000360): LCD
  • Measuring range for frequency (EF009469): 45 Hz
  • Supply voltage DC (EF007534): 110 V
  • Supply voltage AC 60 Hz (EF007533): 100 V
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Remote display (EF016138): No
  • Web server with HTTPS transfer protocol (EF015395): No
  • With Role Based Access Control (RBAC) (EF015394): No
  • With firmware signature (EF015392): No
  • With audit logging (audit log) (EF015391): No
  • Supporting protocol for OPC UA PubSub (EF015390): No
  • Supporting protocol for IEC 61850 Ethernet (EF015389): No
  • Supporting protocol for PROFINET IO (EF007525): No
  • Effective power measurement device (EF006561): Yes

More info

▲

DMGKIT100150

Composed of one DMG100 multimeter and N° 3 CTs 150/5A for Ø23mm/0.91” cable

Technical specifications

Type of product:
Multifunction digital metering instruments
Type of installation:
DIN rail mounting
Primary current Ipn (/5) [A]:
150
Type of current connection:
CT /5A /1A
Current harmonic analysis:
15th order
Built-in communication port:
No
Expandable:
No
Order codeDMGKIT100150
Weight [g]820
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]206X092X170
Volume [cm³]3221.84
Bar code [EAN13]8013975215203
HS Code90303100
