View larger
Images are for illustrative purposes only. Please refer to data sheet for details

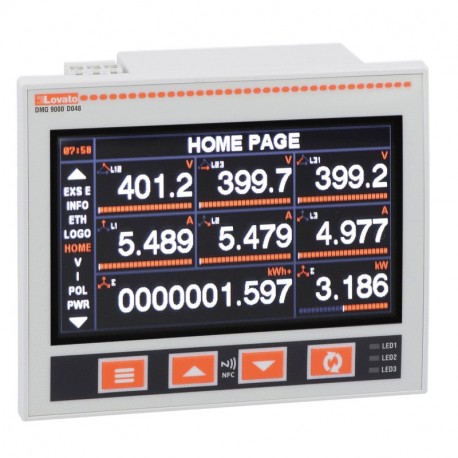

DMG9000D048 LOVATO M. COLOR GLCD PA PANEL, RS485+ETH 48VDC
DMG9000D048
DMG9000D048
LOVATO ELECTRIC
1 Pcs.
M. COLOR GLCD PA PANEL, RS485+ETH 48VDC
Power analyzer with widescreen colour LCD. Auxiliary supply 12...48VDC. Expandable with 3 EXP... modules, built-in RS485 and Ethernet ports, data memory for logging, compatible with Easy Branch power monitoring system
MULT. PANN. GLCD, RS485 + ETH 48VDC
Automation > Multifunction measuring instrument
Metering instruments and current transformers - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲DMG9000D048
Power analyzer with widescreen colour LCD. Auxiliary supply 12...48VDC. Expandable with 3 EXP... modules, built-in RS485 and Ethernet ports, data memory for logging, compatible with Easy Branch power monitoring system
Technical specifications
- Type of product:
- Power analyzers and EASY BRANCH power monitoring system
- Type of installation:
- Flush mounting
- Type of current connection:
- CT /5A /1A
- Accuracy active energy measurement:
- Class 0.5s (IEC/EN 62053-22)
- Reactive energy:
- Class 1 (IEC/EN 62053-24)
- Current harmonic analysis:
- 63rd order
- Built-in communication port:
- RS485 and ethernet
- Expandable:
- Yes
| Order code | DMG9000D048 |
|---|---|
| Weight [g] | 439 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 153X117X092 |
| Volume [cm³] | 1646.9 |
| Bar code [EAN13] | 8013975322697 |
| HS Code | 90303100 |
1118.82 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP), front side (EF003118) | IP65 |
| Display (EF000360) | LCD |
| Voltage type (supply voltage) (EF002991) | DC |
| Accuracy class active energy according to IEC 62053-22 (EF015238) | 0.5S |
| Measuring range for frequency (EF009469) | 45 Hz |
| Supply voltage DC (EF007534) | 12 V |
| Remote display (EF016138) | No |
| Web server with HTTPS transfer protocol (EF015395) | Yes |
| With Role Based Access Control (RBAC) (EF015394) | No |
| With logging of security events (security event log) (EF015393) | No |
| With firmware signature (EF015392) | No |
| Supporting protocol for OPC UA PubSub (EF015390) | No |
| Supporting protocol for IEC 61850 Ethernet (EF015389) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Effective power measurement device (EF006561) | Yes |
| Voltmeter (EF006560) | Yes |
| Pulse counter (EF006559) | No |
| Frequency meter (EF006558) | Yes |
| With rotational speed meter (EF006557) | No |
| Reactive power meter (EF006556) | Yes |
| Ampere meter (EF006555) | Yes |
| Supporting protocol for other bus systems (EF003062) | No |
| Supporting protocol for Modbus (EF003057) | Yes |
| Supporting protocol for PROFIBUS (EF003052) | Yes |
| Number of current measurement inputs (EF015388) | 4 |
| Number of voltage measurement inputs (EF015385) | 5 |
| Sampling frequency (EF015240) | 6400 Hz |
| Display resolution (vertical) (EF012562) | 272 px |
| Number of Ethernet connections (EF004661) | 1 |
| Number of analogue outputs (EF001995) | 0 |
| Number of analogue inputs (EF001994) | 480 |
| Number of digital outputs (EF001993) | 0 |
| Number of digital inputs (EF001992) | 0 |
| Depth (EF000049) | 70 mm |
| Height (EF000040) | 96 mm |
| Width (EF000008) | 118 mm |
