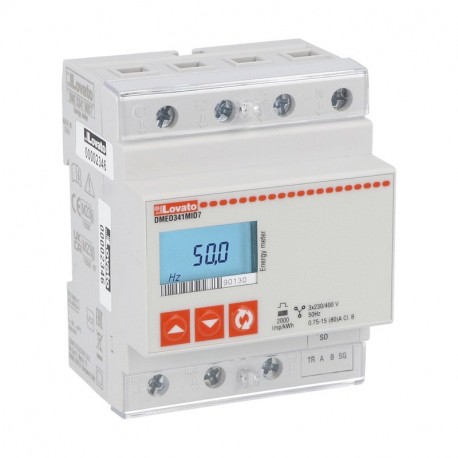

LOVATO ELECTRIC DMED341MID7 DMED341MID7 LOVATO 3P 4U RS485 METER 80A MID 70C SO View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMED341MID7 LOVATO 3P 4U RS485 METER 80A MID 70C SO

DMED341MID7

DMED341MID7

LOVATO ELECTRIC

1 Pcs.

3P 4U RS485 METER 80A MID 70C SO Energy meter, three-phase with neutral, non expandable, MID certified -25…+70°C, 80A direct connection, 4U, RS485 interface, programmable static output, multi-measurements CONT. 3P 4U RS485 80A MID 70C SO SIGN

Automation > Kilowatt-hour meter
Metering instruments and current transformers - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

DMED341MID7

Energy meter, three-phase with neutral, non expandable, MID certified -25…+70°C, 80A direct connection, 4U, RS485 interface, programmable static output, multi-measurements

Technical specifications

Type of product:
Energy meters - Three-phase
Type of installation:
DIN rail mounting
Type of current connection:
Direct
IEC maximum current (Imax) [A]:
80
Type of energy measurement:
Imported/exported active energy and imported/exported reactive energy
Accuracy active energy measurement:
Class B (EN 50470-3)
Reactive energy:
Class 2 (IEC/EN 62053-23)
Current harmonic analysis:
No
Built-in communication port:
RS485
Expandable:
No
MID certified:
Imported active energy
Order codeDMED341MID7
Weight [g]375
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]153X117X092
Volume [cm³]1646
Bar code [EAN13]8013975318607
HS Code90283019

ETIM for DMED341MID7 Meters (EC001506)
Feature Name Feature Value
Nominal voltage (Un) L-L (EF008872) 400 V
Nominal voltage (Un) N-L (EF008871) 230 V
Pulse rate (EF008840) 1000 Imp/kWh (kvarh)
Frequency (EF000416) 45 Hz
Nominal current (In) (EF008873) 15 A
Width in number of modular spacings (EF002950) 4
Max. current (Imax) (EF000877) 80 A
Depth (EF000049) 58 mm
Height (EF000040) 90 mm
Width (EF000008) 72 mm
With lock code (EF008846) Yes
EEC40 signature (EF008845) No
Measurement type load profile (EF008844) No
Calibrated (EF008836) Yes
Pole type (EF008843) Four conductor
Accuracy class (EF008842) B
Pulse output (EF008838) Optic
Approval (EF008837) Measuring Instruments Directive
Energy type (EF007135) Effective power and reactive power
Type of interface (EF006977) RS-485
Degree of protection (IP) (EF005474) IP20
Type of meter (EF005441) Electronic
Type of indication (EF000306) Digital
Suitable for (EF000073) Purchase
Model (EF000010) Direct measurement
Mounting method (EF000003) DRA (DIN-rail adapter)
