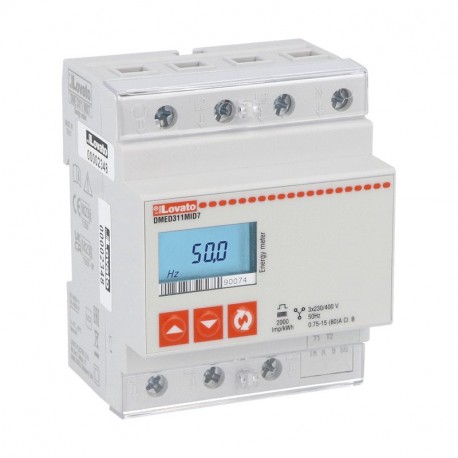

LOVATO ELECTRIC DMED311 DMED311 LOVATO 3P 4U RS485 METER 80A TI View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DMED311 LOVATO 3P 4U RS485 METER 80A TI

DMED311

DMED311

LOVATO ELECTRIC

1 Pcs.

3P 4U RS485 METER 80A TI Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, RS485 interface, multi-measurements CONT. 3P 4U RS485 80A TI

Automation > Kilowatt-hour meter
Metering instruments and current transformers - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

DMED311

Energy meter, three-phase with neutral, non expandable, 80A direct connection, 4U, RS485 interface, multi-measurements

Technical specifications

Type of product:
Energy meters - Three-phase
Type of installation:
DIN rail mounting
Type of current connection:
Direct
IEC maximum current (Imax) [A]:
80
Accuracy active energy measurement:
Class 1 (IEC/EN 62053-21)
Reactive energy:
Class 2 (IEC/EN 62053-23)
Current harmonic analysis:
No
Built-in communication port:
No
Expandable:
No
MID certified:
No
Order codeDMED311
Weight [g]375
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]153X117X092
Volume [cm³]1646
Bar code [EAN13]8013975318584
HS Code90283019

ETIM for DMED311 Meters (EC001506)
Feature Name Feature Value
Nominal voltage (Un) L-L (EF008872) 400 V
Nominal voltage (Un) N-L (EF008871) 230 V
Pulse rate (EF008840) 1000 Imp/kWh (kvarh)
Frequency (EF000416) 45 Hz
Nominal current (In) (EF008873) 15 A
Width in number of modular spacings (EF002950) 4
Max. current (Imax) (EF000877) 80 A
Depth (EF000049) 58 mm
Height (EF000040) 90 mm
Width (EF000008) 72 mm
With lock code (EF008846) Yes
EEC40 signature (EF008845) No
Measurement type load profile (EF008844) No
Calibrated (EF008836) Yes
Pole type (EF008843) Four conductor
Accuracy class (EF008842) B
Pulse output (EF008838) Optic
Approval (EF008837) Domestic
Tariff control (EF008834) External
Tariff type (EF007550) Two-tariff
Energy type (EF007135) Effective power and reactive power
Type of interface (EF006977) RS-485
Degree of protection (IP) (EF005474) IP20
Type of meter (EF005441) Electronic
Type of indication (EF000306) Digital
Suitable for (EF000073) Purchase
Model (EF000010) Direct measurement
Mounting method (EF000003) DRA (DIN-rail adapter)
