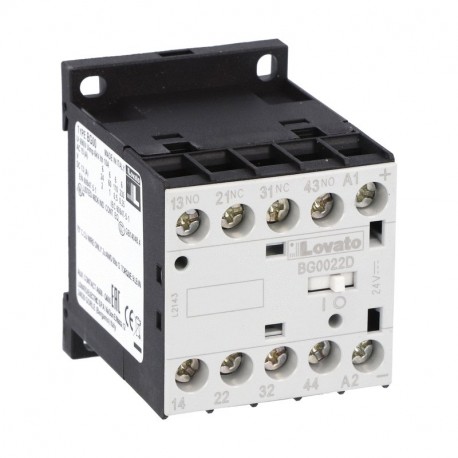

LOVATO ELECTRIC 11BG0022D060 11BG0022D060 BG0022D060 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 60VDC, 2NO.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0022D060 BG0022D060 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 60VDC, 2NO..

11BG0022D060

BG0022D060

LOVATO ELECTRIC

1 Pcs.

CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, DC COIL, 60VDC, 2NO AND 2NC Minicont. Aux. 2NA+2NC 10A AC1 60V DC Control relay with DC coil, 60VDC, 2NO and 2NC

Automation > Contactor relay
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Lovato Electric with part number 11BG0022D060, this control relay is an electromechanical switching device deployed within automation systems to govern auxiliary control circuits and manage low-power switching operations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Mounting method (EF000003): DIN-rail/screw
  • Rated control supply voltage DC (EF003980): 60 V
  • With LED indication (EF005950): No
  • Suitable for manual operation (EF002978): No
  • Interface (EF000594): No
  • Rated operation current Ie, 400 V (EF001378): 10 A

More info

▲

11BG0022D060

Control relay with DC coil, 60VDC, 2NO and 2NC

Technical specifications

Type of product:
Control relays with AC and DC control circuit
Number of poles:
4
Type of coil:
DC coil
Rated coil voltage [V]:
60
Type of built-in auxiliary contacts:
2NO+2NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0022D060
Weight [g]222
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975082492
HS Code85365080

43.49 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
