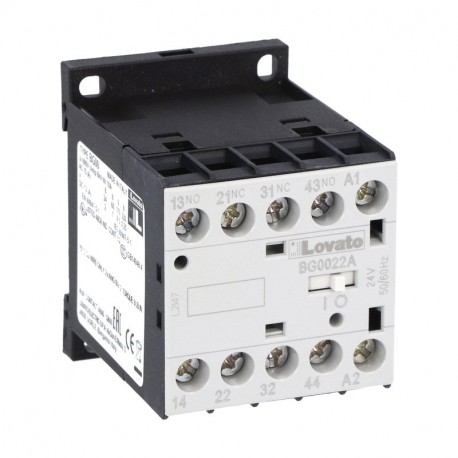

LOVATO ELECTRIC 11BG0022A048 11BG0022A048 BG0022A048 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, AC COIL 50/60HZ, 48.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0022A048 BG0022A048 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, AC COIL 50/60HZ, 48..

11BG0022A048

BG0022A048

LOVATO ELECTRIC

1 Pcs.

CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, AC COIL 50/60HZ, 48VAC, 2NO AND 2NC Minicont. Aux. 2NA+2NC 10A AC1 48V 50/60Hz Control relay with AC coil 50/60Hz, 48VAC, 2NO and 2NC

Automation > Contactor relay
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An 11BG0022A048 BG0022A048 LOVATO CONTROL RELAY WITH CONTROL CIRCUIT: AC AND DC, BG00 TYPE, AC COIL 50/60HZ, 48.. by Lovato Electric is utilized for managing low-power control signals and interlocking auxiliary circuits within industrial machinery. Control relays are essential components in automated systems, enabling the logical sequencing of electrical operations and signaling between different control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Connection type auxiliary circuit (EF006820): Screw connection
  • Mounting method (EF000003): DIN-rail/screw
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • With LED indication (EF005950): No
  • Suitable for manual operation (EF002978): No
  • Interface (EF000594): No
  • Rated operation current Ie, 400 V (EF001378): 10 A

More info

▲

11BG0022A048

Control relay with AC coil 50/60Hz, 48VAC, 2NO and 2NC

Technical specifications

Type of product:
Control relays with AC and DC control circuit
Number of poles:
4
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
48
Type of built-in auxiliary contacts:
2NO+2NC
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0022A048
Weight [g]176
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975081501
HS Code85365080

34.34 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
