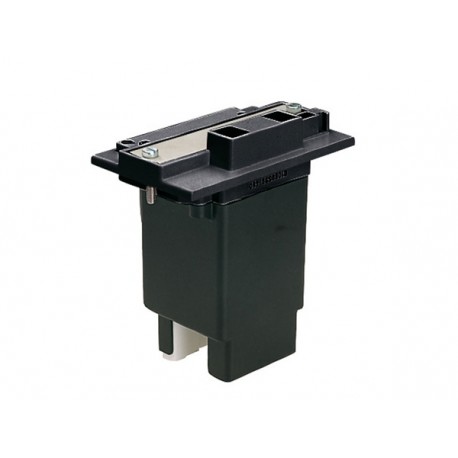

LOVATO ELECTRIC 11BA1796110 11BA1796110 BA1796110 LOVATO COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B500-B630-B630 1000-B1250-.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BA1796110 BA1796110 LOVATO COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B500-B630-B630 1000-B1250-..

11BA1796110

BA1796110

LOVATO ELECTRIC

1 Pcs.

COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B500-B630-B630 1000-B1250-B1600 Protected coil block B500.. B1600 110V AC/DC coil assembly (coil, rectifier and coil protection) for B500-B630-B6301000-B1250-B1600 contactors

Automation > Coil for relay
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 11BA1796110 ba1796110 lovato coil assembly (coil, rectifier and coil protection), b500-b630-b630 1000-b1250- functions as a complete replacement subassembly designed to energize large industrial contactors and maintain reliable switching states under load. Assemblies of this type integrate rectification and protective circuitry to ensure stable operation in demanding power control architectures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Rated control supply voltage DC (EF003980): 110 V
  • Rated control supply voltage AC 60 Hz (EF003979): 110 V
  • Rated control supply voltage AC 50 Hz (EF003978): 110 V

More info

▲

11BA1796110

AC/DC coil assembly (coil, rectifier and coil protection) for B500-B630-B6301000-B1250-B1600 contactors

Technical specifications

Type of product:
Spare Parts
Type of coil:
AC/DC coil
Type of spare parts:
Coil assembly
Spare parts for:
11B500…; 11B630…; 11B630 1000…; 11B1250…; 11B1600…
Order code11BA1796110
Weight [g]4985
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]208X148X232
Volume [cm³]7141.888
Bar code [EAN13]8013975030684
HS Code85389099

818.26 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
