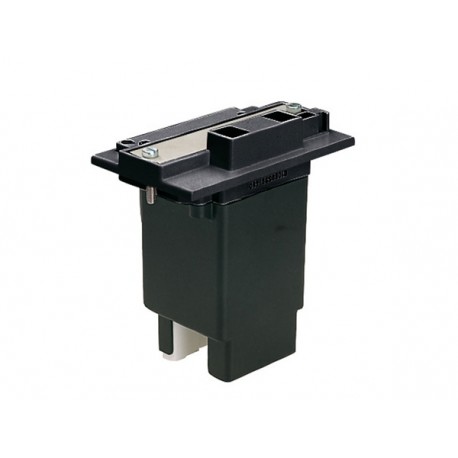

LOVATO ELECTRIC 11BA1671220 11BA1671220 BA1671220 LOVATO COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B250-B310-B400 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BA1671220 BA1671220 LOVATO COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B250-B310-B400

11BA1671220

BA1671220

LOVATO ELECTRIC

1 Pcs.

COIL ASSEMBLY (COIL, RECTIFIER AND COIL PROTECTION), B250-B310-B400 Full coil group (coil + feeder + protector) B250... B400 220V AC/DC coil assembly (coil, rectifier and coil protection) for B250-B310-B400 contactors

Automation > Coil for low-voltage
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

11BA1671220 Lovato Electric coil assembly (coil, rectifier and coil protection) provides a complete replacement actuation module for heavy-duty industrial contactors. Integrated rectifier and protection circuits safeguard the electromagnetic coil against voltage surges and ensure stable DC operation from AC supplies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating frequency (EF007024): 50 Hz
  • Suitable as net reactance coil (EF007234): No
  • Suitable as commutation reactance coil (EF007233): No
  • Suitable as ripple filter choke (EF007232): No
  • Suitable as output reactance coil (EF007227): No
  • Max. rated operation voltage Ue (EF007357): 240 V

More info

▲

11BA1671220

AC/DC coil assembly (coil, rectifier and coil protection) for B250-B310-B400 contactors

Technical specifications

Type of product:
Spare Parts
Type of coil:
AC/DC coil
Type of spare parts:
Coil assembly
Spare parts for:
11B250…; 11B310…; 11B400…
Order code11BA1671220
Weight [g]2340
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]185X148X122
Volume [cm³]3340.36
Bar code [EAN13]8013975030813
HS Code85389099

487.65 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
