View larger
Images are for illustrative purposes only. Please refer to data sheet for details

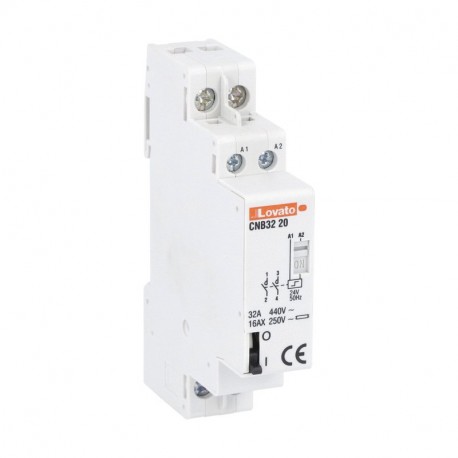

CNB3220024 LOVATO LATCHING RELAY 1M 32A AC1 2P 24V
CNB3220024
3220024
LOVATO ELECTRIC
1 Pcs.
LATCHING RELAY 1M 32A AC1 2P 24V
Latching relay, one or two-pole, 32A AC1, 24VAC (2NO)
Automation > Power contactor, AC switching
Modular contactors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲CNB3220024
Latching relay, one or two-pole, 32A AC1, 24VAC (2NO)
Technical specifications
- Type of product:
- Latching relays
- Number of DIN modules:
- 1
- Rated supply voltage:
- 24VAC
- IEC Conventional free air thermal current Ith [A]:
- 32
- Type of contacts:
- 2NO
| Order code | CNB3220024 |
|---|---|
| Weight [g] | 135 |
| Qty. per package | 8 |
| Multiple qty. of packs per order | 8 |
| Package dimensions [mm] | |
| Volume [cm³] | 0 |
| Bar code [EAN13] | 8013975242780 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Frame clamp |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Modular version (EF001126) | Yes |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 32 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 9 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 2 |
