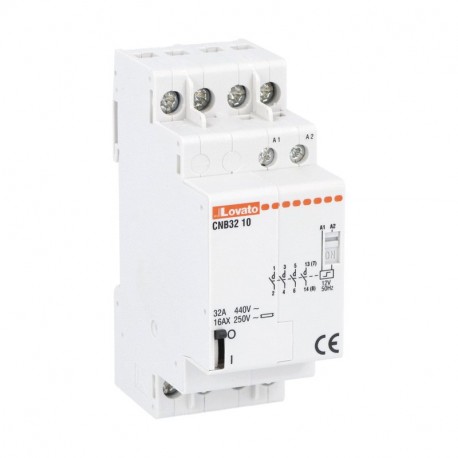

LOVATO ELECTRIC CNB3210012 CNB3210012 LOVATO LATCHING RELAY 2M 32A AC1 4P 12V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CNB3210012 LOVATO LATCHING RELAY 2M 32A AC1 4P 12V

CNB3210012

3210012

LOVATO ELECTRIC

1 Pcs.

LATCHING RELAY 2M 32A AC1 4P 12V Latching relay, three or four-pole, 32A AC1, 12VAC (4NO)

Automation > Power contactor, AC switching
Modular contactors - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric part number CNB3210012 is a Lovato latching relay engineered to maintain contact status without continuous coil energization, optimizing energy efficiency in control systems. Latching relays are frequently utilized in building automation and industrial switching logic where sustained states are required despite power interruptions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Frame clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 12 V
  • Rated control supply voltage AC 50 Hz (EF003978): 12 V
  • Modular version (EF001126): Yes
  • Rated operation current Ie at AC-1, 400 V (EF001393): 32 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Number of normally open contacts as main contact (EF001374): 4

More info

▲

CNB3210012

Latching relay, three or four-pole, 32A AC1, 12VAC (4NO)

Technical specifications

Type of product:
Latching relays
Number of DIN modules:
2
Rated supply voltage:
12VAC
IEC Conventional free air thermal current Ith [A]:
32
Type of contacts:
4NO
Order codeCNB3210012
Weight [g]195
Qty. per package4
Multiple qty. of packs per order4
Package dimensions [mm]
Volume [cm³]0
Bar code [EAN13]8013975242711
HS Code85365080

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
