View larger
Images are for illustrative purposes only. Please refer to data sheet for details

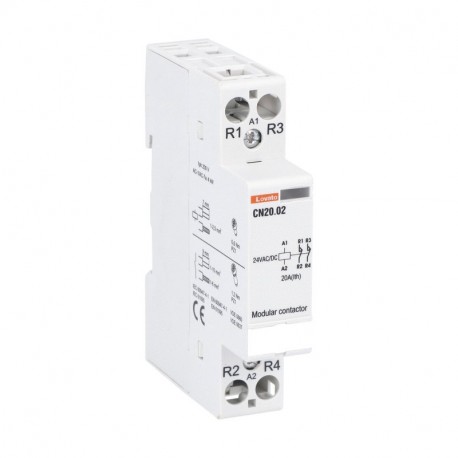

CN2002024 LOVATO Modular contactor Bipolar 20A 24V AC/DC 2NC
CN2002024
2002024
LOVATO ELECTRIC
1 Pcs.
Modular contactor Bipolar 20A 24V AC/DC 2NC
Modular contactor, one or two-pole, 20A AC1, 24VAC/DC (2NC)
MODULAR CONTACTOR, ONE OR TWO-POLE, 20A AC1, 24VAC/DC (2NC)
Automation > Installation contactor for distribution board
Modular contactors - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲CN2002024
Modular contactor, one or two-pole, 20A AC1, 24VAC/DC (2NC)
Technical specifications
- Type of product:
- Contactors
- Number of DIN modules:
- 1
- Rated supply voltage:
- 24VAC/DC
- IEC Conventional free air thermal current Ith [A]:
- 20
- Type of contacts:
- 2NC
| Order code | CN2002024 |
|---|---|
| Weight [g] | 138 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 178X090X072 |
| Volume [cm³] | 115.344 |
| Bar code [EAN13] | 8013975147283 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Voltage type (excitation voltage) (EF005293) | AC/DC |
| Rated excitation voltage (EF008409) | 20.4 V |
| Rated operating voltage (EF001435) | 24 V |
| With day/night function (EF021124) | No |
| Hum-free (EF016334) | Yes |
| Additional equipment possible (EF008148) | Yes |
| Slider for hand switch (EF005240) | No |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Rated operation current (EF007679) | 20 A |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 232 VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 840 VA |
| Max. load fluorescent lamp (EF004971) | 754 VA |
| Max. incandescent lamp load (EF004952) | 2000 W |
| Width in number of modular spacings (EF002950) | 1 |
| Built-in depth (EF000218) | 65 mm |
