View larger
Images are for illustrative purposes only. Please refer to data sheet for details

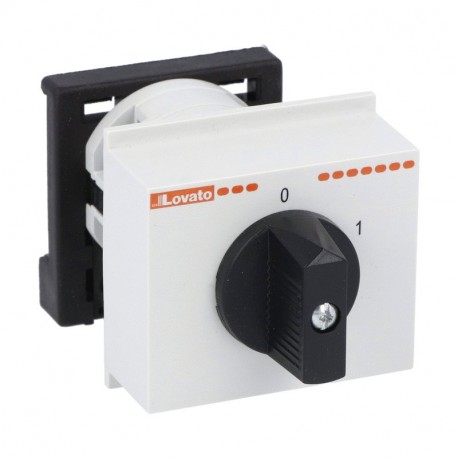

7GN1291O48 GN1291O48 LOVATO 2-pole switch 12A Model O48 DIN GN91
7GN1291O48
GN1291O48
LOVATO ELECTRIC
1 Pcs.
2-pole switch 12A Model O48 DIN GN91
Interruptor II GN91 16A Mod. O48 DIN
Rotary cam switch 7GN series, ON-OFF switch 2 poles 16A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm
ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 2 POLES 16A, MODULAR SERVICE COVER FOR 35MM DIN RAIL MOUNTING WITH BLACK HANDLE, FRONT PLATE 45X54MM
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN1291O48
Rotary cam switch 7GN series, ON-OFF switch 2 poles 16A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 91 - ON/OFF switch 2 poles
- IEC Conventional free air thermal current Ith [A]:
- 16
- Mounting form:
- O48 - Modular service cover for 35mm din rail mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN1291O48 |
|---|---|
| Weight [g] | 103 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144007000 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height opening (EF004778) | 45 mm |
| Width opening (EF004565) | 54 mm |
| Number of switch positions (EF000231) | 2 |
| Hole diameter (EF000079) | 45 mm |
