View larger
Images are for illustrative purposes only. Please refer to data sheet for details

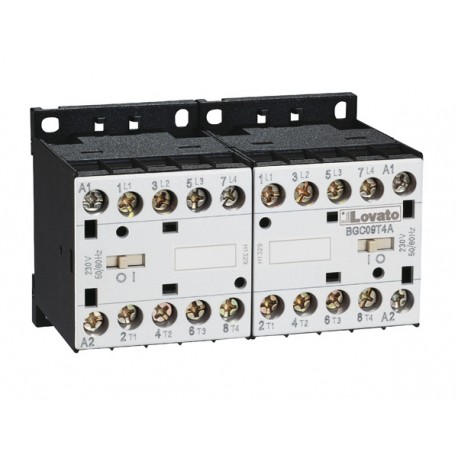

11BGC09T4D110 BGC09T4D110 LOVATO CHANGEOVER CONTACTOR ASSEMBLY, DC COIL, BUILT-IN INTERLOCK ONLY, 20A AC1 IN..
11BGC09T4D110
BGC09T4D110
LOVATO ELECTRIC
1 Pcs.
CHANGEOVER CONTACTOR ASSEMBLY, DC COIL, BUILT-IN INTERLOCK ONLY, 20A AC1 IN DC. COIL VOLTAGE 110VDC
20A Enclavation switching. Internal 110V DC
Changeover assembly, DC coil, built-in interlock only, 20A AC1 in DC. Coil voltage 110VDC
Automation > Combination of contactors
Electromechanical starters - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11BGC09T4D110
Changeover assembly, DC coil, built-in interlock only, 20A AC1 in DC. Coil voltage 110VDC
Technical specifications
- Type of product:
- Changeover contactor assemblies
- Type:
- Open frame, with built-in interlock only
- Type of coil:
- DC coil
- Contactor coil voltage:
- 110VDC
| Order code | 11BGC09T4D110 |
|---|---|
| Weight [g] | 448 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 097X065X090 |
| Volume [cm³] | 567.45 |
| Bar code [EAN13] | 8013975095577 |
| HS Code | 85365080 |
228.13 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA) (EF011959) | Other |
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP) (EF005474) | IP20 |
| Function (EF000030) | Changeover contactor |
| Rated control supply voltage DC (EF003980) | 110 V |
| Suitable for rail mounting (EF003972) | Yes |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 20 A |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 4 |
