View larger
Images are for illustrative purposes only. Please refer to data sheet for details

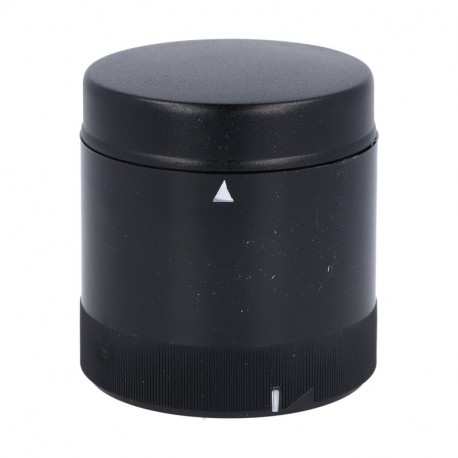

8LT7S1B LT7S1B LOVATO PULSED OR CONTINUOUS SOUND MODULES COMPLETE WITH COVER. Ø70MM, 24VAC/DC, 16 SOUND TONE..
8LT7S1B
LT7S1B
LOVATO ELECTRIC
1 Pcs.
PULSED OR CONTINUOUS SOUND MODULES COMPLETE WITH COVER. Ø70MM, 24VAC/DC, 16 SOUND TONES (80DB MAX). IP65 PROTECTION
Mod. sound, 24V AC/DC 16 Selected sounds.
Pulsed or continuous sound module complete with cover. Ø70mm, 24VAC/DC, 16 sound tones (80dB MAX). IP65 protection. Black
Automation > Acoustic module for signal tower
Signal towers and beacons - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LT7S1B
Pulsed or continuous sound module complete with cover. Ø70mm, 24VAC/DC, 16 sound tones (80dB MAX). IP65 protection. Black
Technical specifications
- Type of product:
- Signal tower
- Ø size [mm-inch]:
- 70 / 2.75
- Type:
- Modular
- Components:
- Sound modules
- Series:
- 8LT7
- Colour:
- Black
- Supply voltage:
- 24VAC/VDC
- Sound intensity [dB]:
- 80
- Housing material:
- Polycarbonate
| Order code | 8LT7S1B |
|---|---|
| Weight [g] | 114 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 070X070X074 |
| Volume [cm³] | 362.6 |
| Bar code [EAN13] | 8013975171653 |
| HS Code | 85365080 |
171.58 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP65 |
| Voltage type (EF000187) | AC/DC |
| Function (EF000030) | Continuous tone/pulse tone |
| Colour (EF000007) | Black |
| Operating voltage DC (EF008208) | 24 V |
| Operating voltage AC 60 Hz (EF008207) | 24 V |
| Operating voltage AC 50 Hz (EF008206) | 24 V |
| Tone adjustable (EF005920) | Yes |
| Loudness (EF000144) | 90 dB |
| Outer diameter (EF000015) | 70 mm |
