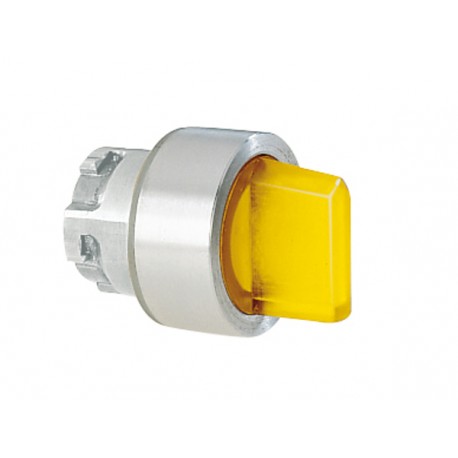

8LM2TSL1306 LM2TSL1306 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 ..
8LM2TSL1306
LM2TSL1306
LOVATO ELECTRIC
1 Pcs.
Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for industrial automation consoles, the 8LM2TSL1306 LM2TSL1306 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 3 POSITION, 1 0 .. serves as a manual control interface for selecting multi-position operational modes while providing visual status indication. Illuminated selectors are essential for clear operator feedback on control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection (NEMA) (EF011959): 4X
- Colour control element (EF007167): Blue
- Colour indicator light cap (EF007165): Blue
- Type of control element (EF006976): Short thumb-grip
- Material front ring (EF005972): Metal
- Degree of protection (IP), front side (EF003118): IP65
- Switching function latching (EF007447): No
- With front ring (EF006014): Yes
- Spring-return (EF001407): Yes
- Suitable for lighting (EF001142): Yes
- Height opening (EF004778): 22 mm
- Width opening (EF004565): 22 mm
- Number of switch positions (EF000231): 3
- Hole diameter (EF000079): 22 mm
More info
▲8LM2TSL1306
Illuminated selector switch actuator, Ø22mm 8LM series metal, 3 position, 1 - 0 - 2. Blue
Technical specifications
- Type of actuator:
- 1 - 0 - 2
- Colour:
- Blue
| Order code | 8LM2TSL1306 |
|---|---|
| Weight [g] | 24.7 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975042427 |
| HS Code | 85365080 |
