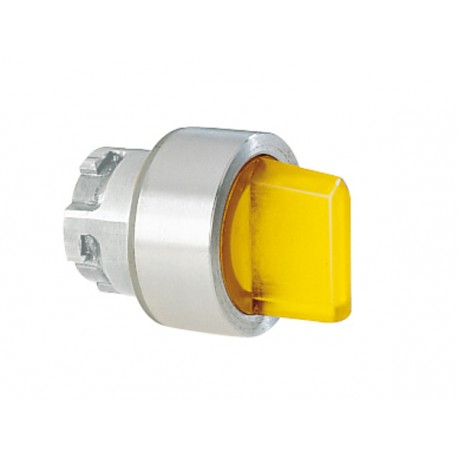

LOVATO ELECTRIC 8LM2TSL1206 8LM2TSL1206 LM2TSL1206 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1... View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TSL1206 LM2TSL1206 LOVATO ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 1...

8LM2TSL1206

LM2TSL1206

LOVATO ELECTRIC

1 Pcs.

ILLUMINATED SELECTOR SWITCH ACTUATOR, Ø22MM 8LM METAL SERIES, 2 POSITION, 0 - 1. BLUE Metallic Light Selector 2 positions "0-1" Fixed Blue Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Blue

Automation > Front element for selector switch
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 8LM2TSL1206 illuminated selector switch actuator provides a robust user interface for switching electrical circuits and operational modes on control desks and industrial enclosures. The integrated illumination allows operators to instantly identify switch status in various lighting environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA) (EF011959): 4X
  • Colour control element (EF007167): Blue
  • Colour indicator light cap (EF007165): Blue
  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): Yes
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TSL1206

Illuminated selector switch actuator, Ø22mm 8LM series metal, 2 position, 0 - 1. Blue

Technical specifications

Type of actuator:
0 - 1
Colour:
Blue
Order code8LM2TSL1206
Weight [g]25
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X048
Volume [cm³]43.2
Bar code [EAN13]8013975042304
HS Code85365080
