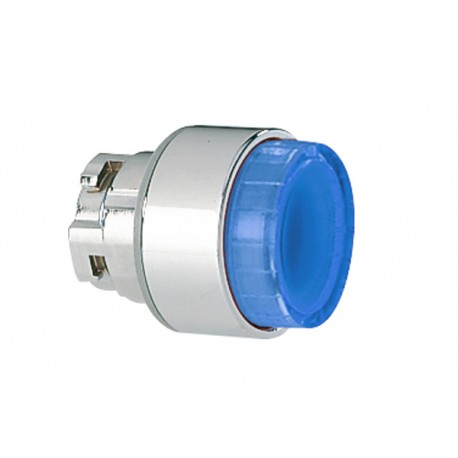

8LM2TBL206 LM2TBL206 LOVATO ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, BL..
8LM2TBL206
LM2TBL206
LOVATO ELECTRIC
1 Pcs.
ILLUMINATED BUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, EXTENDED, BLUE
Blue Protruding Metallic Light Button
Illuminated button actuator, spring return, Ø22mm 8LM series metal, extended, blue
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TBL206
Illuminated button actuator, spring return, Ø22mm 8LM series metal, extended, blue
Technical specifications
- Colour:
- Blue
| Order code | 8LM2TBL206 |
|---|---|
| Weight [g] | 36 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975041758 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Blue |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | Yes |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
