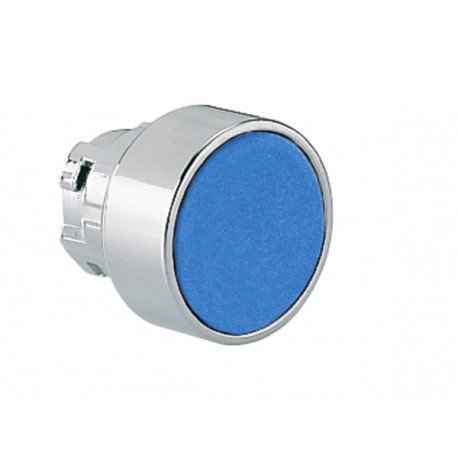

LOVATO ELECTRIC 8LM2TB106 8LM2TB106 LM2TB106 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, BLUE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

8LM2TB106 LM2TB106 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, BLUE

8LM2TB106

LM2TB106

LOVATO ELECTRIC

10 Pcs.

PUSHBUTTON ACTUATOR, SPRING RETURN, Ø22MM 8LM METAL SERIES, FLUSH, BLUE BLUE FLUSH BUTTON ACTUATOR Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, blue

Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 8LM2TB106 Lovato pushbutton actuator is a standard control device installed on factory floor equipment to facilitate manual operator inputs and system commands. Spring-return mechanisms ensure the control circuit resets instantly when the button is released.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (NEMA), front side (EF011961): 4X
  • Construction type lens (EF006253): Round
  • Material front ring (EF005972): Metal
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour button (EF000190): Blue
  • Switching function latching (EF007447): No
  • With front ring (EF006014): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of command positions (EF001372): 1
  • Hole diameter (EF000079): 22 mm

More info

▲

8LM2TB106

Pushbutton actuator, spring return, Ø22mm 8LM series metal, flush, blue

Technical specifications

Colour:
Blue
Order code8LM2TB106
Weight [g]34.6
Qty. per package10
Multiple qty. of packs per order10
Package dimensions [mm]150X060X038
Volume [cm³]34.2
Bar code [EAN13]8013975040300
HS Code85365080
