View larger

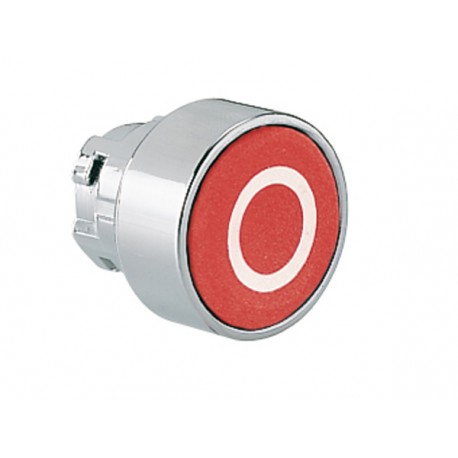

Images are for illustrative purposes only. Please refer to data sheet for details
8LM2TB1142 LM2TB1142 LOVATO PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, ..
8LM2TB1142
LM2TB1142
LOVATO ELECTRIC
1 Pcs.
PUSHBUTTON ACTUATOR, SPRING RETURN, WITH SYMBOL, Ø22MM 8LM METAL SERIES, FLUSH, ← / BLACK
Black Metal Pushbutton with left arrow symbol.
Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, ←/Black
Automation > Front element for push button
Pushbuttons and selector switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LM2TB1142
Pushbutton actuator, spring return, with symbol, Ø22mm 8LM series metal, flush, ←/Black
Technical specifications
- Colour:
- Black
| Order code | 8LM2TB1142 |
|---|---|
| Weight [g] | 33.2 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975040348 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (NEMA), front side (EF011961) | 4X |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Metal |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Type of button (EF001546) | Other |
| Colour button (EF000190) | Black |
| Switching function latching (EF007447) | No |
| With front ring (EF006014) | Yes |
| With protective cover (EF005500) | No |
| Labelled (EF001537) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of command positions (EF001372) | 1 |
| Hole diameter (EF000079) | 22 mm |
