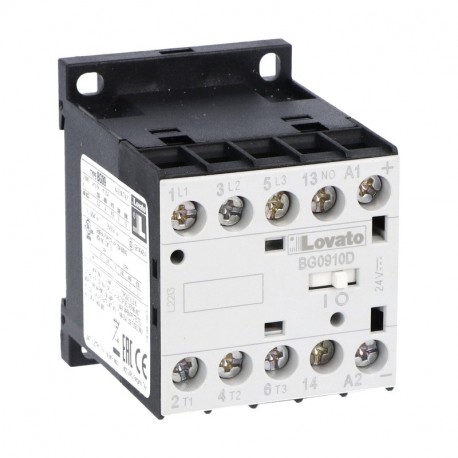

LOVATO ELECTRIC 11BG0910D024V120 11BG0910D024V120 BG0910D024V120 LOVATO Minicontactor three-pole 9A AC3 1 NA Coil 24V DC Built-in Filter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BG0910D024V120 BG0910D024V120 LOVATO Minicontactor three-pole 9A AC3 1 NA Coil 24V DC Built-in Filter

11BG0910D024V120

BG0910D024V120

LOVATO ELECTRIC

1 Pcs.

Minicontactor three-pole 9A AC3 1 NA Coil 24V DC Built-in Filter 3P CONTACTOR 1NO 9A AC3 C/W FILTER Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 24VDC, 1NO auxiliary contact, complete with built-in TVS (diode) suppressor

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Minicontactors are compact switching devices deployed in control panels to manage auxiliary functions, small motor loads, and instrumentation circuits where panel space is at a premium. This Lovato Electric unit features integrated filtering for stable low-voltage DC control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): DC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage DC (EF003980): 12 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 4 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 20 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 9 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

11BG0910D024V120

Three-pole contactor, IEC operating current Ie (AC3) = 9A, DC coil, 24VDC, 1NO auxiliary contact, complete with built-in TVS (diode) suppressor

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
DC coil
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
20
IEC operating current and power Ie (AC3) 400V [A/Kw]:
9A / 4.0Kw
UL/CSA horsepower ratings 480V [HP]:
5
Type of built-in auxiliary contacts:
1NO
Type of mounting:
Screw / DIN rail 35mm
Order code11BG0910D024V120
Weight [g]212
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]060X045X060
Volume [cm³]162
Bar code [EAN13]8013975109434
HS Code85365080
