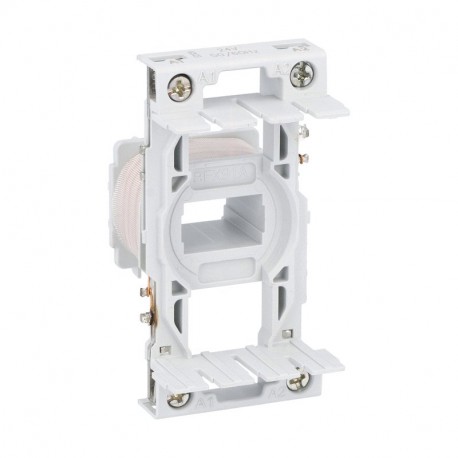

LOVATO ELECTRIC BF6500A46060 BF6500A46060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 65A, AC COIL 60HZ, 460VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF6500A46060 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 65A, AC COIL 60HZ, 460VAC

BF6500A46060

46060

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 65A, AC COIL 60HZ, 460VAC 3P CONTACTOR 65A AC3 460VAC 60HZ Three-pole contactor, IEC operating current Ie (AC3) = 65A, AC coil 60Hz, 460VAC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An electromechanical three-pole contactor, specifically the Lovato Electric BF6500A46060, is engineered for switching heavy electrical power loads and controlling electric motors safely within automated systems. Devices of this type provide reliable switching cycles for industrial distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Frame clamp
  • Rated control supply voltage AC 60 Hz (EF003979): 460 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 31 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 100 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 65 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 30 kW

More info

▲

BF6500A46060

Three-pole contactor, IEC operating current Ie (AC3) = 65A, AC coil 60Hz, 460VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 60Hz
Rated coil voltage [V]:
460
IEC operating current Ith (AC1) [A]:
100
IEC operating current and power Ie (AC3) 400V [A/Kw]:
65A / 30Kw
UL/CSA horsepower ratings 480V [HP]:
50
Type of mounting:
Screw / DIN rail 35mm
Order codeBF6500A46060
Weight [g]1020
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]141X063X120
Volume [cm³]1066
Bar code [EAN13]8013975223314
HS Code85365080

258.96 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
