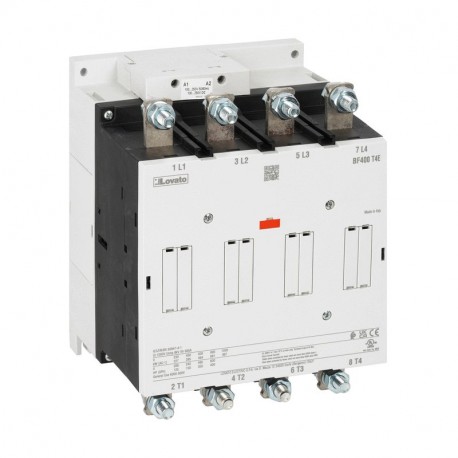

LOVATO ELECTRIC BF400T4E400 BF400T4E400 LOVATO CONTACTOR 4P 600A AC1 250... 500VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF400T4E400 LOVATO CONTACTOR 4P 600A AC1 250... 500VAC/DC

BF400T4E400

BF400T4E400

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 4P 600A AC1 250... 500VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 250…500VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric BF400T4E400 LOVATO CONTACTOR 4P 600A AC1 250... 500VAC/DC is an electromechanical power contactor utilized to establish or break electrical power connections in heavy-duty distribution systems. It provides remote switching capabilities for high-current loads and industrial machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 250 V
  • Rated control supply voltage AC 60 Hz (EF003979): 250 V
  • Rated control supply voltage AC 50 Hz (EF003978): 250 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 190 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 600 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 400 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 200 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF400T4E400

Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 250…500VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
250…500
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order codeBF400T4E400
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312759
HS Code85365080

2041.76 £
