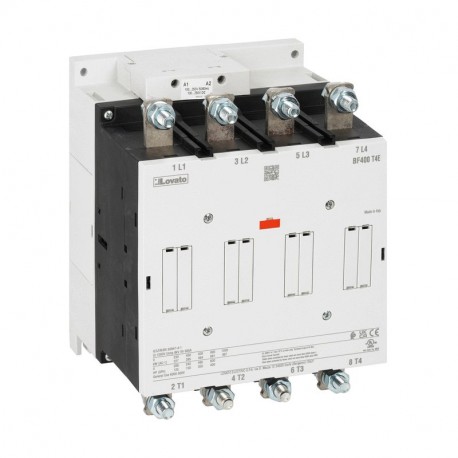

LOVATO ELECTRIC BF400T4E230 BF400T4E230 LOVATO CONTACTOR 4P 600A AC1 100...250VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF400T4E230 LOVATO CONTACTOR 4P 600A AC1 100...250VAC/DC

BF400T4E230

BF400T4E230

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 4P 600A AC1 100...250VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 100...250VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric contactor such as the BF400T4E230 is designed for high-capacity power switching in industrial infrastructure, large motor control setups, and heavy distribution networks. These parts ensure secure electrical isolation and dependable load management in automated plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 100 V
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 190 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 600 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 400 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 200 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF400T4E230

Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 100...250VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
100…250
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
For photovoltaic application:
Yes
Type of mounting:
Screw
Order codeBF400T4E230
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312742
HS Code85365080

2041.76 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
