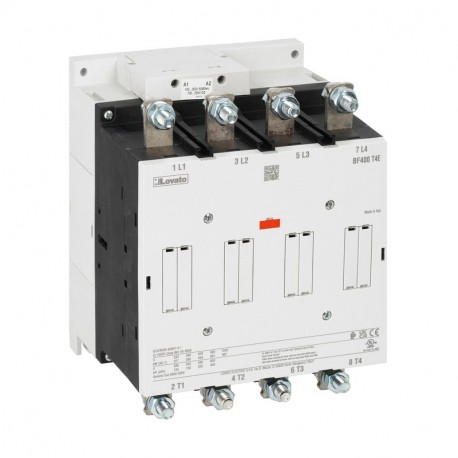

LOVATO ELECTRIC BF400T4E110 BF400T4E110 LOVATO CONTACTOR 4P 600A AC1 60... 130VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF400T4E110 LOVATO CONTACTOR 4P 600A AC1 60... 130VAC/DC

BF400T4E110

BF400T4E110

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 4P 600A AC1 60... 130VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 60…130VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for massive electrical distribution demands, the BF400T4E110 LOVATO CONTACTOR 4P 600A AC1 60... 130VAC/DC handles heavy power switching in industrial infrastructure and automated plants. High-capacity contactors ensure safe isolation and control of high-current circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 60 V
  • Rated control supply voltage AC 60 Hz (EF003979): 60 V
  • Rated control supply voltage AC 50 Hz (EF003978): 60 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 190 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 600 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 400 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 200 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF400T4E110

Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 60…130VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
60…130
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order codeBF400T4E110
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312735
HS Code85365080

2041.76 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
