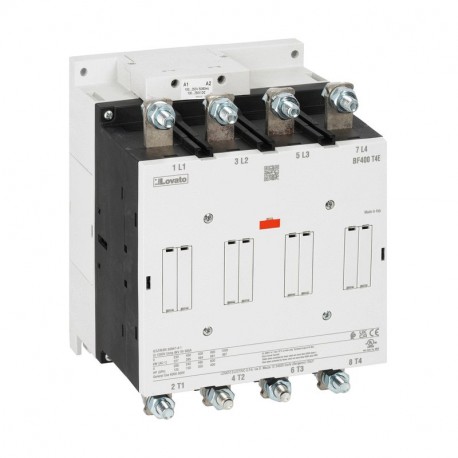

LOVATO ELECTRIC BF400T4E024 BF400T4E024 LOVATO 4P 600A AC1 24-60VAC/20-60VDC CONTACTOR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF400T4E024 LOVATO 4P 600A AC1 24-60VAC/20-60VDC CONTACTOR

BF400T4E024

BF400T4E024

LOVATO ELECTRIC

1 Pcs.

4P 600A AC1 24-60VAC/20-60VDC CONTACTOR Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 24...60VAC - 20...60VDC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Four-pole contactors such as the Lovato Electric BF400T4E024 are implemented in high-power industrial installations to switch complex multi-phase electrical loads securely. They offer dependable circuit control for large heating networks and motor systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 20 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 190 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 600 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 400 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 200 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF400T4E024

Four-pole contactor, IEC operating current Ith (AC1) = 600A, AC/DC coil, 24...60VAC - 20...60VDC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
24…60VAC / 20…60VDC
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order codeBF400T4E024
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312728
HS Code85365080

2041.76 £
