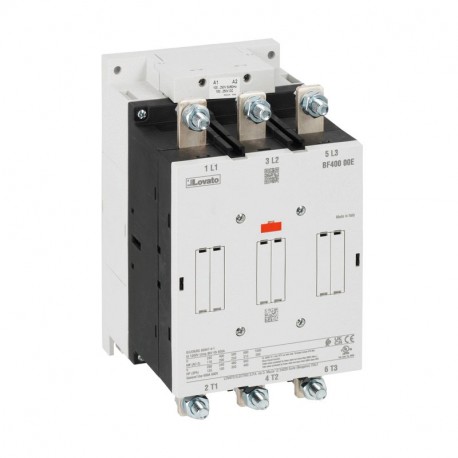

LOVATO ELECTRIC BF40000E230 BF40000E230 LOVATO CONTACTOR 3P 400A AC3 100...250VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF40000E230 LOVATO CONTACTOR 3P 400A AC3 100...250VAC/DC

BF40000E230

BF40000E230

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 3P 400A AC3 100...250VAC/DC Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 100...250VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy electrical switching in high-capacity industrial systems is managed effectively by the Lovato Electric BF40000E230 contactor. This robust device handles massive current loads, making it indispensable for large motor drives and heavy power distribution networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 100 V
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 190 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 600 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 400 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 200 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF40000E230

Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 100...250VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
100…250
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order codeBF40000E230
Weight [g]4600
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312704
HS Code85365080

1718.52 £
