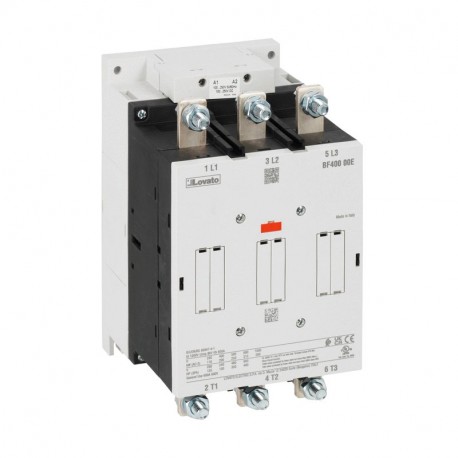

LOVATO ELECTRIC BF40000E024 BF40000E024 LOVATO 3P 400A AC3 CONTACTOR 24-60VAC/20-60VDC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF40000E024 LOVATO 3P 400A AC3 CONTACTOR 24-60VAC/20-60VDC

BF40000E024

BF40000E024

LOVATO ELECTRIC

1 Pcs.

3P 400A AC3 CONTACTOR 24-60VAC/20-60VDC Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 24...60VAC - 20...60VDC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for large-scale industrial switching, the BF40000E024 Lovato Electric contactor handles substantial operational loads in heavy manufacturing, pumping stations, and energy distribution systems. Such high-capacity contactors ensure durable performance under continuous industrial duty.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC: 20 V
  • Rated control supply voltage AC 60 Hz: 24 V
  • Rated control supply voltage AC 50 Hz: 24 V
  • Rated operation current Ie at AC-4, 400 V: 190 A
  • Rated operation current Ie at AC-1, 400 V: 600 A
  • Rated operation current Ie at AC-3, 400 V: 400 A
  • Number of normally open contacts as main contact: 0
  • Rated operation power at AC-3, 400 V: 200 kW
  • Modular version: Yes
  • Voltage type for actuating: AC/DC
  • Type of electrical connection of main circuit: Screw connection

More info

▲

BF40000E024

Three-pole contactor, IEC operating current Ie (AC3) = 400A, AC/DC coil, 24...60VAC - 20...60VDC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
24…60VAC / 20…60VDC
IEC operating current Ith (AC1) [A]:
600
IEC operating current and power Ie (AC3) 400V [A/Kw]:
400A /200Kw
UL/CSA horsepower ratings 480V [HP]:
350
Type of mounting:
Screw
Order codeBF40000E024
Weight [g]4600
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312681
HS Code85365080

1718.52 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
