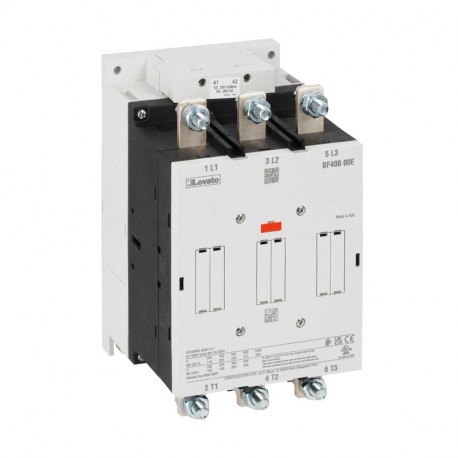

LOVATO ELECTRIC BF33000E400 BF33000E400 LOVATO CONTACTOR 3P 330A AC3 250... 500VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF33000E400 LOVATO CONTACTOR 3P 330A AC3 250... 500VAC/DC

BF33000E400

BF33000E400

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 3P 330A AC3 250... 500VAC/DC Three-pole contactor, IEC operating current Ie (AC3) = 330A, AC/DC coil, 250…500VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A BF33000E400 LOVATO CONTACTOR is a heavy-duty industrial switching solution designed to manage large electrical motors, high-current industrial machinery, and power distribution grids. These high-capacity units ensure safe electrical isolation and remote switching under rigorous operating demands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 250 V
  • Rated control supply voltage AC 60 Hz (EF003979): 250 V
  • Rated control supply voltage AC 50 Hz (EF003978): 250 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 160 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 500 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 330 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 160 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF33000E400

Three-pole contactor, IEC operating current Ie (AC3) = 330A, AC/DC coil, 250…500VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
250…500
IEC operating current Ith (AC1) [A]:
500
IEC operating current and power Ie (AC3) 400V [A/Kw]:
330A /160Kw
UL/CSA horsepower ratings 480V [HP]:
250
Type of mounting:
Screw
Order codeBF33000E400
Weight [g]4600
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312636
HS Code85365080

1589.23 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
