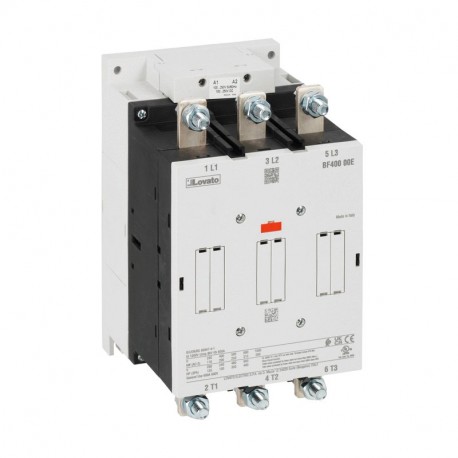

LOVATO ELECTRIC BF33000E230 BF33000E230 LOVATO CONTACTOR 3P 330A AC3 100...250VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF33000E230 LOVATO CONTACTOR 3P 330A AC3 100...250VAC/DC

BF33000E230

BF33000E230

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 3P 330A AC3 100...250VAC/DC Three-pole contactor, IEC operating current Ie (AC3) = 330A, AC/DC coil, 100...250VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to handle heavy-duty power switching, the BF33000E230 Lovato Electric contactor manages substantial electrical currents in industrial automation architectures. These robust devices ensure reliable control and isolation of large machinery across continuous manufacturing environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 100 V
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 160 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 500 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 330 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 160 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF33000E230

Three-pole contactor, IEC operating current Ie (AC3) = 330A, AC/DC coil, 100...250VAC/DC
  • Type of product:Contactors
  • Number of poles:3
  • Type of coil:AC/DC coil
  • Rated coil voltage [V]:100…250
  • IEC operating current Ith (AC1) [A]:500
  • IEC operating current and power Ie (AC3) 400V [A/Kw]:330A /160Kw
  • Yielded mechanical performance for three-phase AC motor 460/480V:250
  • Fixing:Screw
Order codeBF33000E230
Weight [g]4600
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312629
HS Code85365080

1531.05 £
