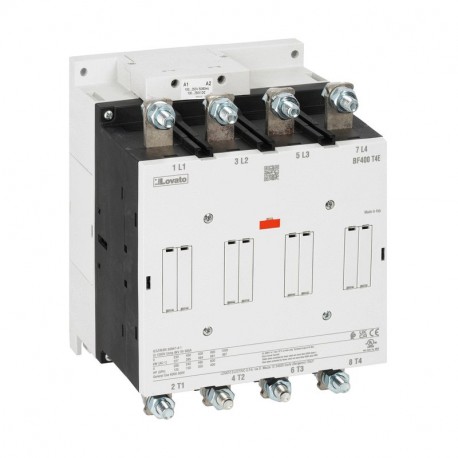

LOVATO ELECTRIC BF265T4E230 BF265T4E230 LOVATO CONTACTOR 4P 450A AC1 100...250VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF265T4E230 LOVATO CONTACTOR 4P 450A AC1 100...250VAC/DC

BF265T4E230

BF265T4E230

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 4P 450A AC1 100...250VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 100...250VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

BF265T4E230

Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 100...250VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
100…250
IEC operating current Ith (AC1) [A]:
450
IEC operating current and power Ie (AC3) 400V [A/Kw]:
265A /132Kw
UL/CSA horsepower ratings 480V [HP]:
200
For photovoltaic application:
Yes
Type of mounting:
Screw
Order codeBF265T4E230
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]15890
Bar code [EAN13]8013975312582
HS Code85365080

1454.55 £


ETIM for BF265T4E230 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Rated control supply voltage DC (EF003980) 100 V
Rated control supply voltage AC 60 Hz (EF003979) 100 V
Rated control supply voltage AC 50 Hz (EF003978) 100 V
Rated operation current Ie at AC-4, 400 V (EF008495) 125 A
Rated operation current Ie at AC-1, 400 V (EF001393) 350 A
Rated operation current Ie at AC-3, 400 V (EF001392) 265 A
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of normally closed contacts as main contact (EF001375) 4
Number of normally open contacts as main contact (EF001374) 0
Rated operation power at AC-3, 400 V (EF001364) 132 kW
Modular version (EF001126) Yes
Voltage type for actuating (EF008242) AC/DC
Type of electrical connection of main circuit (EF006819) Screw connection
