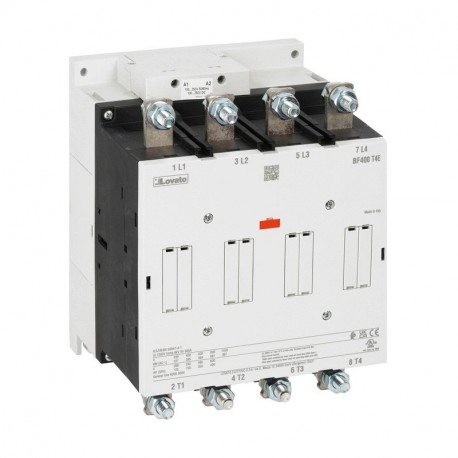

LOVATO ELECTRIC BF265T4E110 BF265T4E110 LOVATO CONTACTOR 4P 450A AC1 60... 130VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF265T4E110 LOVATO CONTACTOR 4P 450A AC1 60... 130VAC/DC

BF265T4E110

BF265T4E110

LOVATO ELECTRIC

1 Pcs.

CONTACTOR 4P 450A AC1 60... 130VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 60…130VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The BF265T4E110 LOVATO CONTACTOR is a heavy-duty industrial switching unit built for controlling large electrical loads and distribution systems. Contactors of this scale are deployed in industrial automation to manage high-amperage motors and heavy equipment securely from a remote control station.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated control supply voltage DC (EF003980): 60 V
  • Rated control supply voltage AC 60 Hz (EF003979): 60 V
  • Rated control supply voltage AC 50 Hz (EF003978): 60 V
  • Rated operation current Ie at AC-4, 400 V (EF008495): 125 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 350 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Number of normally open contacts as main contact (EF001374): 0
  • Rated operation power at AC-3, 400 V (EF001364): 132 kW
  • Modular version (EF001126): Yes
  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Screw connection

More info

▲

BF265T4E110

Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 60…130VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
60…130
IEC operating current Ith (AC1) [A]:
450
IEC operating current and power Ie (AC3) 400V [A/Kw]:
265A /132Kw
UL/CSA horsepower ratings 480V [HP]:
200
Type of mounting:
Screw
Order codeBF265T4E110
Weight [g]6135
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]276X235X245
Volume [cm³]10944
Bar code [EAN13]8013975312575
HS Code85365080

1454.55 £
