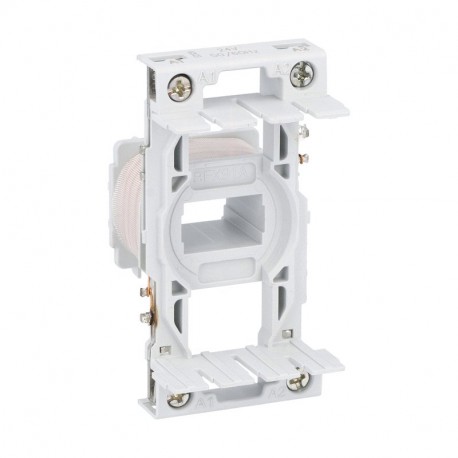

LOVATO ELECTRIC BF2600A02460 BF2600A02460 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 26A, AC COIL 60HZ, 24VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF2600A02460 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 26A, AC COIL 60HZ, 24VAC

BF2600A02460

02460

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 26A, AC COIL 60HZ, 24VAC 3P CONTACTOR 26A AC3 24/60 Three-pole contactor, IEC operating current Ie (AC3) = 26A, AC coil 60Hz, 24VAC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric BF2600A02460 is a three-pole industrial contactor utilized for managing electrical motors and distribution networks. Electromechanical contactors provide a dependable means to remotely switch high current levels safely inside automated industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 11.5 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 45 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 26 A
  • Number of normally open contacts as main contact (EF001374): 3
  • Rated operation power at AC-3, 400 V (EF001364): 13 kW

More info

▲

BF2600A02460

Three-pole contactor, IEC operating current Ie (AC3) = 26A, AC coil 60Hz, 24VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC coil 60Hz
Rated coil voltage [V]:
24
IEC operating current Ith (AC1) [A]:
45
IEC operating current and power Ie (AC3) 400V [A/Kw]:
26A / 13Kw
UL/CSA horsepower ratings 480V [HP]:
15
Type of mounting:
Screw / DIN rail 35mm
Order codeBF2600A02460
Weight [g]426
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]088X056X093
Volume [cm³]458.304
Bar code [EAN13]8013975161029
HS Code85365080

107.47 £
