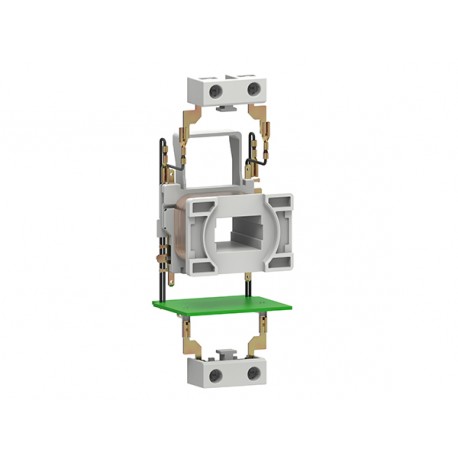

LOVATO ELECTRIC BF195T4E230 BF195T4E230 LOVATO 4P CONTACTOR 275A AC1 100...250VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BF195T4E230 LOVATO 4P CONTACTOR 275A AC1 100...250VAC/DC

BF195T4E230

100250

LOVATO ELECTRIC

1 Pcs.

4P CONTACTOR 275A AC1 100...250VAC/DC Four-pole contactor, IEC operating current Ith (AC1) = 275A, AC/DC coil, 100...250VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for substantial industrial electrical demands, the BF195T4E230 Lovato four-pole contactor provides reliable switching for large multi-phase loads and heavy machinery. Plant operators integrate these versatile components into control systems to manage high-current circuits securely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 100 V
  • Rated control supply voltage AC 60 Hz (EF003979): 100 V
  • Rated control supply voltage AC 50 Hz (EF003978): 100 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 95 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 275 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 195 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 90 kW

More info

▲

BF195T4E230

Four-pole contactor, IEC operating current Ith (AC1) = 275A, AC/DC coil, 100...250VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
100…250
IEC operating current Ith (AC1) [A]:
275
IEC operating current and power Ie (AC3) 400V [A/Kw]:
195A / 90Kw
UL/CSA horsepower ratings 480V [HP]:
150
For photovoltaic application:
Yes
Type of mounting:
Screw
Order codeBF195T4E230
Weight [g]3436.9
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]
Volume [cm³]8217.715
Bar code [EAN13]8013975300435
HS Code85365080

975.09 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
