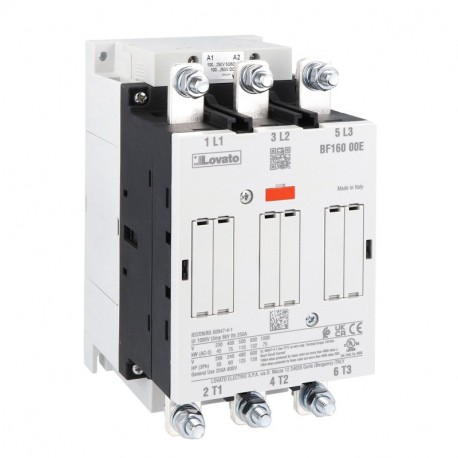

BF16000E110 LOVATO 3P CONTACTOR 160A AC3 48…130VAC/DC
BF16000E110
16000
LOVATO ELECTRIC
1 Pcs.
3P CONTACTOR 160A AC3 48…130VAC/DC
Three-pole contactor, IEC Ie (AC3) operating current = 160A, AC/DC coil, 60... 130VAC/DC
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲BF16000E110
Three-pole contactor, IEC Ie (AC3) operating current = 160A, AC/DC coil, 60... 130VAC/DC
Technical Specifications
- Product Type:
- Contactors
- Number of poles:
- 3
- Coil Type:
- AC/DC coil
- Coil Rated Voltage [V]:
- 60… 130
- Operating current IEC Ith (AC1) [A]:
- 250
- UL/CSA 480 V [HP] Power Ratings:
- 125
- Mounting type:
- Screw
| Order Code | BF16000E110 |
|---|---|
| Weight [g] | 3420.3 |
| Packaging units | 1 |
| Multi-pack order quantity | 1 |
| Packaging dimensions [mm] | 235X187X187 |
| Volume [cm³] | 8217,715 |
| Barcode [EAN13] | 8013975300305 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated control supply voltage DC (EF003980) | 60 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 60 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 60 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 75 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 250 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 160 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | 75 kW |
