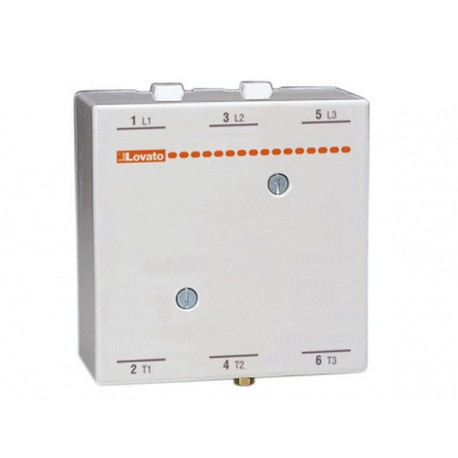

LOVATO ELECTRIC 11BA1838 11BA1838 BA1838 LOVATO ARC CHUTES, B500-B630-B630 1000 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11BA1838 BA1838 LOVATO ARC CHUTES, B500-B630-B630 1000

11BA1838

BA1838

LOVATO ELECTRIC

1 Pcs.

ARC CHUTES, B500-B630-B630 1000 B500 spark arrestor cameras. B630 1000Tripolar Arc chute for B500-B630-B6301000 contactors

Automation > Accessories/spare parts for low-voltage switch technology
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This arc explosion chamber (arc chute) by Lovato Electric, identified by part number 11BA1838, serves as an internal replacement assembly for high-capacity contactors or circuit breakers. Arc chutes are routinely implemented within power switching devices to rapidly quench and extinguish electrical arcs generated during heavy load interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of accessory/spare part (EF000215): Arc explosion chamber (arc chute)
  • Spare part (EF013237): Yes
  • Accessory (EF013236): No

More info

▲

11BA1838

Arc chute for B500-B630-B6301000 contactors

Technical specifications

Type of product:
Spare Parts
Type of spare parts:
Main contacts and arc chutes
Spare parts for:
11B500…; 11B630…; 11B630 1000…
Order code11BA1838
Weight [g]2290
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]230X200X155
Volume [cm³]7130
Bar code [EAN13]8013975092408
HS Code85389099

360.1 £
