View larger
Images are for illustrative purposes only. Please refer to data sheet for details

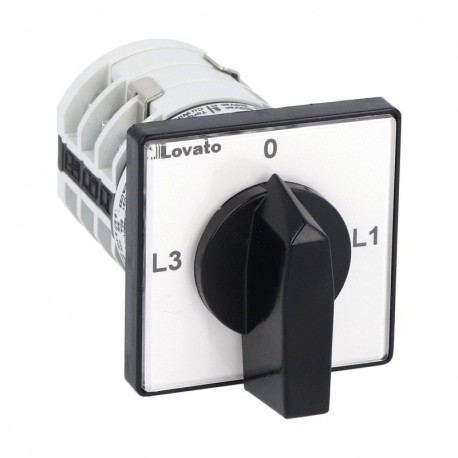

7GN2098U GN2098U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. AMMETER SWITCH, FOR L1-L2-L3 ..
7GN2098U
GN2098U
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. AMMETER SWITCH, FOR L1-L2-L3 READINGS VIA 3 CTS – 4 WAFERS – SCHEME 98, 20A
Conm. GN98 20A Ampmeter Mod. U 48x48
Rotary cam switch 7GN series, ammeter switch 20A, for front mounting with black handle, front plate 48X48mm
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2098U
Rotary cam switch 7GN series, ammeter switch 20A, for front mounting with black handle, front plate 48X48mm
Technical specifications
- Type of product:
- Voltmeters and ammeters
- Switching diagram:
- 98 - Ammeter switch
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2098U |
|---|---|
| Weight [g] | 114 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X102 |
| Volume [cm³] | 255 |
| Bar code [EAN13] | 3850144004702 |
| HS Code | 85365080 |
41.48 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | Other |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 6 |
| Rated permanent current Iu (EF001389) | 20 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
