View larger
Images are for illustrative purposes only. Please refer to data sheet for details

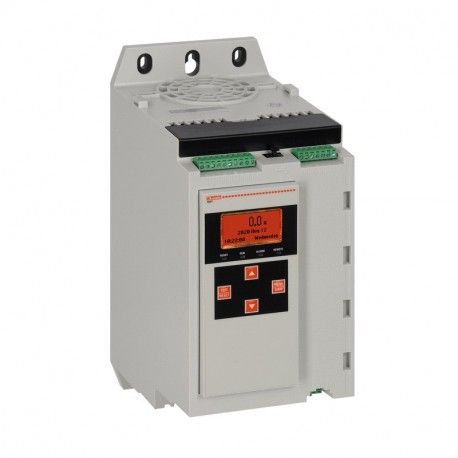

ADXT003424 LOVATO SOFT STARTER 34A 380-690V, AUX 24VAC/DC
ADXT003424
ADXT003424
LOVATO ELECTRIC
1 Pcs.
SOFT STARTER 34A 380-690V, AUX 24VAC/DC
Soft starter, ADXT… series, for standard and heavy-duty applications, with built-in bypass relay. Auxiliary supply voltage 24VAC/DC. Rated operational voltage 380...690VAC, 34A
Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ADXT003424
Soft starter, ADXT… series, for standard and heavy-duty applications, with built-in bypass relay. Auxiliary supply voltage 24VAC/DC. Rated operational voltage 380...690VAC, 34A
Technical specifications
- Type of product:
- Advanced, three phase control
- Number of controlled phases:
- 3
- Rated operational voltage:
- 380…690VAC
- Rated supply voltage:
- 24VAC/DC
- Rated starter current Ie [A]:
- 34
- Rated motor power 400VAC [kW]:
- 22
- Rated motor power 500VAC [KW]:
- 30
| Order code | ADXT003424 |
|---|---|
| Weight [g] | 6000 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 400X170X260 |
| Volume [cm³] | 17680 |
| Bar code [EAN13] | 8013975322482 |
| HS Code | 85371098 |
| Feature Name | Feature Value |
|---|---|
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated operating voltage Ue (EF002418) | 380 V |
| Rated surrounding temperature without derating (EF007074) | 40 °C |
| Rated power three-phase motor, inside delta, at 400 V (EF007056) | 22 kW |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 18.5 kW |
| Rated operation current Ie at 40 °C Tu (EF007039) | 34 A |
| Torque control (EF009215) | No |
| Internal bypass (EF009214) | Yes |
| Integrated motor overload protection (EF007297) | Yes |
| With display (EF000458) | Yes |
| Voltage type for actuating (EF008242) | AC/DC |
| Release class (EF006668) | CLASS 10 |
| Degree of protection (IP) (EF005474) | IP20 |
| Function (EF000030) | Single direction |
