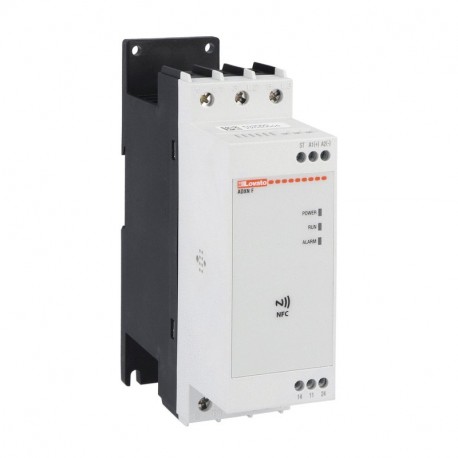

ADXNP03824 LOVATO SOFT STARTER 38A AUX 24VAC/DC ADVANCED
ADXNP03824
03824
LOVATO ELECTRIC
1 unit
Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Lovato Electric ADXNP03824 is an advanced soft starter accessory designed to provide controlled voltage ramping for smooth motor starting and stopping, reducing mechanical wear on drive trains. Soft starters protect industrial pumps, conveyors, and compressors by eliminating high inrush currents during startup sequences. Specific pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Order code: ADXNP03824
- Weight [g]: 780
- Qty. per package: 1
- Multiple qty. of packs per order: 1
- Package dimensions [mm]: 185X176X084
- Volume [cm³]: 2800
- Bar code [EAN13]: 8013975299357
- HS Code: 85044090
- Voltage type for actuating (EF008242): AC/DC
- Degree of protection (IP) (EF005474): IP20
- Rated control supply voltage DC (EF003980): 24 V
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
- Rated control supply voltage AC 50 Hz (EF003978): 24 V
- Rated operating voltage Ue (EF002418): 208 V
- Torque control (EF009215): No
- Internal bypass (EF009214): No
More info
▲ADXNP03824
Soft starter, ADXNP... type, advanced version, with integrated by-pass relay, built-in fan. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 38A
Technical specifications
- Type of product:
- Ultra compact, two phase control
- Version:
- Advanced
- Number of controlled phases:
- 2
- Rated operational voltage:
- 208…600VAC
- Rated supply voltage:
- 24VAC/DC
- Rated starter current Ie [A]:
- 38
- Rated motor power 230VAC [kW]:
- 11
- Rated motor power 400VAC [kW]:
- 18.5
- Rated motor power 500VAC [KW]:
- 22
- Functions:
- NFC, motor current thermal protection, starting with current limit, optical port, optional RS485
| Order code | ADXNP03824 |
|---|---|
| Weight [g] | 780 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X176X084 |
| Volume [cm³] | 2800 |
| Bar code [EAN13] | 8013975299357 |
| HS Code | 85044090 |
