View larger
Images are for illustrative purposes only. Please refer to data sheet for details

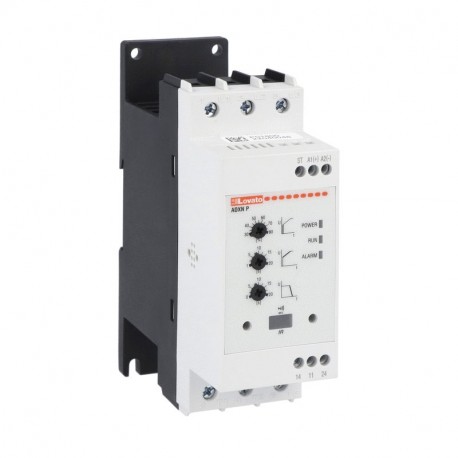

ADXNF01224 LOVATO SOFT STARTER 12A AUX 24VAC/DC NFC
ADXNF01224
01224
LOVATO ELECTRIC
1 Pcs.
SOFT STARTER 12A AUX 24VAC/DC NFC
Soft starter, ADXNF... type, NFC version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 12A
Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲ADXNF01224
Soft starter, ADXNF... type, NFC version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 12A
Technical specifications
- Type of product:
- Ultra compact, two phase control
- Version:
- NFC
- Number of controlled phases:
- 2
- Rated operational voltage:
- 208…600VAC
- Rated supply voltage:
- 24VAC/DC
- Rated starter current Ie [A]:
- 12
- Rated motor power 230VAC [kW]:
- 3
- Rated motor power 400VAC [kW]:
- 5.5
- Rated motor power 500VAC [KW]:
- 5.5
- Functions:
- NFC, password
| Order code | ADXNF01224 |
|---|---|
| Weight [g] | 540 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X176X084 |
| Volume [cm³] | 2800 |
| Bar code [EAN13] | 8013975299135 |
| HS Code | 85044090 |
156.23 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Degree of protection (IP) (EF005474) | IP20 |
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 24 V |
| Rated operating voltage Ue (EF002418) | 208 V |
| Torque control (EF009215) | No |
| Internal bypass (EF009214) | No |
| Integrated motor overload protection (EF007297) | No |
| With display (EF000458) | No |
| Rated surrounding temperature without derating (EF007074) | 60 °C |
| Rated power three-phase motor, inline, at 400 V (EF007054) | 5.5 kW |
| Rated power three-phase motor, inline, at 230 V (EF007053) | 3 kW |
| Rated operation current Ie at 40 °C Tu (EF007039) | 12 A |
