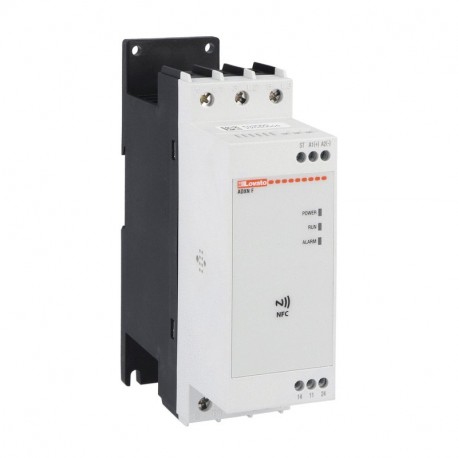

ADXNB03024 LOVATO SOFT STARTER 30A AUX 24VAC/DC BASIC
ADXNB03024
03024
LOVATO ELECTRIC
1 Pcs.
Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric ADXNB03024 soft starter facilitates controlled motor startup, reducing mechanical stress on connected industrial equipment. These compact units are routinely deployed in manufacturing systems to optimize drive train performance and protect electrical supplies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC/DC
- Degree of protection (IP) (EF005474): IP20
- Rated control supply voltage DC (EF003980): 24 V
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
- Rated control supply voltage AC 50 Hz (EF003978): 24 V
- Rated operating voltage Ue (EF002418): 208 V
- Torque control (EF009215): No
- Internal bypass (EF009214): No
- Integrated motor overload protection (EF007297): No
- With display (EF000458): No
- Rated surrounding temperature without derating (EF007074): 60 °C
- Rated power three-phase motor, inline, at 400 V (EF007054): 15 kW
- Rated power three-phase motor, inline, at 230 V (EF007053): 7.5 kW
- Rated operation current Ie at 40 °C Tu (EF007039): 30 A
More info
▲ADXNB03024
Soft starter, ADXNB... type, basic version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 30A
Technical specifications
- Type of product:
- Ultra compact, two phase control
- Version:
- Basic
- Number of controlled phases:
- 2
- Rated operational voltage:
- 208…600VAC
- Rated supply voltage:
- 24VAC/DC
- Rated starter current Ie [A]:
- 30
- Rated motor power 230VAC [kW]:
- 7.5
- Rated motor power 400VAC [kW]:
- 15
- Rated motor power 500VAC [KW]:
- 18.5
- Functions:
- Basic parameters only
| Order code | ADXNB03024 |
|---|---|
| Weight [g] | 720 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X176X084 |
| Volume [cm³] | 2800 |
| Bar code [EAN13] | 8013975299050 |
| HS Code | 85044090 |
