View larger

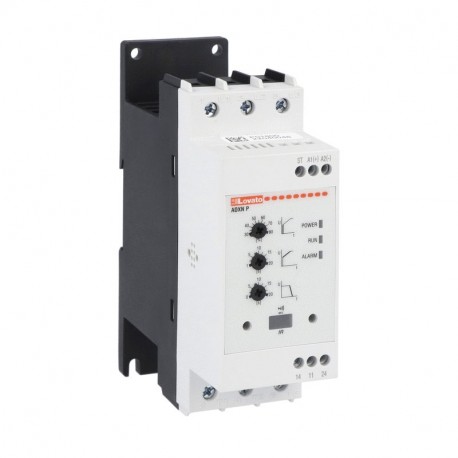

ADXNB01824 LOVATO SOFT STARTER 18A AUX 24VAC/DC BASIC
ADXNB01824
01824
LOVATO ELECTRIC
1 Pcs.
Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric soft starter provides electronic control over motor starting currents, delivering gradual voltage application to prevent mechanical shock and electrical strain on facility supply lines. These compact devices are deployed in industrial automation setups to protect motor windings and driven machinery alike. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Voltage type for actuating (EF008242): AC/DC
- Degree of protection (IP) (EF005474): IP20
- Rated control supply voltage DC (EF003980): 24 V
- Rated control supply voltage AC 60 Hz (EF003979): 24 V
- Rated control supply voltage AC 50 Hz (EF003978): 24 V
- Rated operating voltage Ue (EF002418): 208 V
- Torque control (EF009215): No
- Internal bypass (EF009214): No
- Integrated motor overload protection (EF007297): No
- With display (EF000458): No
- Rated surrounding temperature without derating (EF007074): 60 °C
- Rated power three-phase motor, inline, at 400 V (EF007054): 7.5 kW
- Rated power three-phase motor, inline, at 230 V (EF007053): 4 kW
- Rated operation current Ie at 40 °C Tu (EF007039): 18 A
More info
▲ADXNB01824
Soft starter, ADXNB... type, basic version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 18A
Technical specifications
- Type of product:
- Ultra compact, two phase control
- Version:
- Basic
- Number of controlled phases:
- 2
- Rated operational voltage:
- 208…600VAC
- Rated supply voltage:
- 24VAC/DC
- Rated starter current Ie [A]:
- 18
- Rated motor power 230VAC [kW]:
- 4
- Rated motor power 400VAC [kW]:
- 7.5
- Rated motor power 500VAC [KW]:
- 11
- Functions:
- Basic parameters only
| Order code | ADXNB01824 |
|---|---|
| Weight [g] | 540 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 185X176X084 |
| Volume [cm³] | 2800 |
| Bar code [EAN13] | 8013975299012 |
| HS Code | 85044090 |
