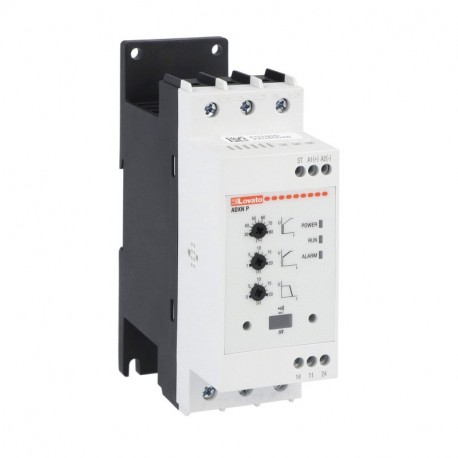

LOVATO ELECTRIC ADXNB00624 ADXNB00624 LOVATO SOFT STARTER 6A AUX 24VAC/DC BASIC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ADXNB00624 LOVATO SOFT STARTER 6A AUX 24VAC/DC BASIC

ADXNB00624

00624

LOVATO ELECTRIC

1 Pcs.

SOFT STARTER 6A AUX 24VAC/DC BASIC Soft starter, ADXNB... type, basic version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 6A

Automation > Soft starter
Soft Starters / Starters Static - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Compact motor control panels utilize the Lovato Electric ADXNB00624 soft starter to regulate startup currents and prevent mechanical shocks in smaller automated machinery. Solid-state starters provide reliable acceleration control for standard industrial setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Degree of protection (IP) (EF005474): IP20
  • Rated control supply voltage DC (EF003980): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Rated operating voltage Ue (EF002418): 208 V
  • Torque control (EF009215): No
  • Internal bypass (EF009214): No
  • Integrated motor overload protection (EF007297): No
  • With display (EF000458): No
  • Rated surrounding temperature without derating (EF007074): 60 °C
  • Rated power three-phase motor, inline, at 400 V (EF007054): 2.2 kW
  • Rated power three-phase motor, inline, at 230 V (EF007053): 1.1 kW
  • Rated operation current Ie at 40 °C Tu (EF007039): 6 A

More info

▲

ADXNB00624

Soft starter, ADXNB... type, basic version, with integrated by-pass relay. Auxiliary supply 24VAC/DC. Rated operational voltage 208...600VAC, 6A

Technical specifications

Type of product:
Ultra compact, two phase control
Version:
Basic
Number of controlled phases:
2
Rated operational voltage:
208…600VAC
Rated supply voltage:
24VAC/DC
Rated starter current Ie [A]:
6
Rated motor power 230VAC [kW]:
1.1
Rated motor power 400VAC [kW]:
2.2
Rated motor power 500VAC [KW]:
3
Functions:
Basic parameters only
Order codeADXNB00624
Weight [g]540
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]185X176X084
Volume [cm³]2800
Bar code [EAN13]8013975298978
HS Code85044090
