View larger
Images are for illustrative purposes only. Please refer to data sheet for details

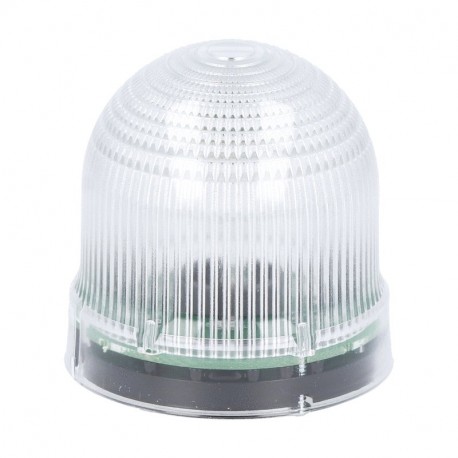

8LB6EL8 LB6EL LOVATO Module Ø 62mm fixed light, Type BA 15d (Direct power) White
8LB6EL8
LB6EL
LOVATO ELECTRIC
1 Pcs.
Module Ø 62mm fixed light, Type BA 15d (Direct power) White
Steady light module. Ø62mm. BA15D fitting, direct supply, white
STEADY LIGHT MODULE. Ø62MM. BA15D FITTING, DIRECT SUPPLY, WHITE
Automation > Optical module for signal tower
Signal towers and beacons - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲8LB6EL8
Steady light module. Ø62mm. BA15D fitting, direct supply, white
Technical specifications
- Type of product:
- Signal beacon
- Ø size [mm-inch]:
- 62 / 2.44
- Components:
- Steady light modules
- Series:
- 8LB6
- Colour:
- White
- Type of light:
- Steady
- Housing material:
- Polycarbonate
| Order code | 8LB6EL8 |
|---|---|
| Weight [g] | 76 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 070X070X074 |
| Volume [cm³] | 362.6 |
| Bar code [EAN13] | 8013975177297 |
| HS Code | 85365080 |
52.44 £
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP54 |
| Lamp type (EF002423) | None |
| Voltage type (EF000187) | AC/DC |
| Housing colour (EF000136) | White |
| Function (EF000030) | Continuous light |
| Colour (EF000007) | Colourless |
| Operating voltage DC (EF008208) | 250 V |
| Operating voltage AC 60 Hz (EF008207) | 250 V |
| Operating voltage AC 50 Hz (EF008206) | 250 V |
| Outer diameter (EF000015) | 62 mm |
