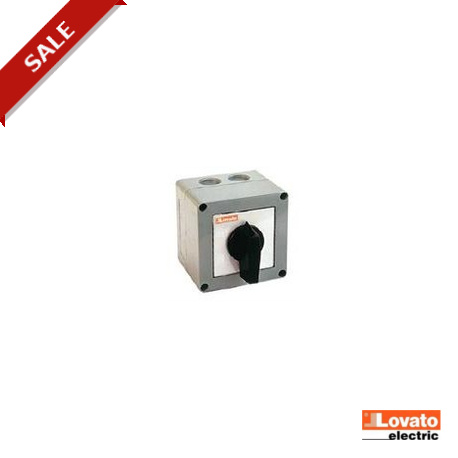

LOVATO ELECTRIC 7GN2086P 7GN2086P GN2086P LOVATO bipolar switch without "0" 3 Positions GN86 20A Model P 75x75 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2086P GN2086P LOVATO bipolar switch without "0" 3 Positions GN86 20A Model P 75x75

7GN2086P

GN2086P

LOVATO ELECTRIC

1 Pcs.

bipolar switch without "0" 3 Positions GN86 20A Model P 75x75 Switch II "1-3" GN86 20 A Mod. P 75x75 Enclosed rotary cam switch 7GN series, multi-step 1-2-3, 2 poles 20A in plastic enclosure 75X75mm with black handle

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for control panel integration, this Lovato Electric 7GN2086P GN2086P LOVATO bipolar switch without "0" acts as a manual disconnect and routing device for complex industrial electrical circuits. Panel builders utilize such components to direct power reliably across distinct operating pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 3
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 3

More info

▲

7GN2086P

Enclosed rotary cam switch 7GN series, multi-step 1-2-3, 2 poles 20A in plastic enclosure 75X75mm with black handle

Technical specifications

Type of product:
Multi-step
Switching diagram:
86 - Multi-step 1-2-3 2 poles
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN2086P
Weight [g]262
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]080X080X113
Volume [cm³]0
Bar code [EAN13]3850144159525
HS Code85365080
