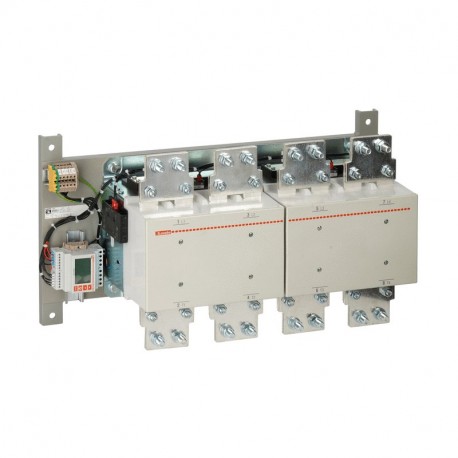

LOVATO ELECTRIC 11B1250424220 11B1250424220 B1250424220 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 1250A, AC/DC COIL, 220.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B1250424220 B1250424220 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 1250A, AC/DC COIL, 220..

11B1250424220

B1250424220

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 1250A, AC/DC COIL, 220…240VAC/DC Contactor IV 1250A AC1 B1250.4.24-220V AC/DC Four-pole contactor, IEC operating current Ith (AC1) = 1250A, AC coil, 220...240VAC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for massive electrical distribution networks, the Lovato Electric four-pole contactor manages extreme current levels in heavy industrial environments. Four-pole architecture allows simultaneous switching of multi-phase power supplies and neutral lines in large automation panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 220 V
  • Rated control supply voltage AC 60 Hz (EF003979): 220 V
  • Rated control supply voltage AC 50 Hz (EF003978): 220 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-1, 400 V (EF001393): 1250 A
  • Number of normally open contacts as main contact (EF001374): 4

More info

▲

11B1250424220

Four-pole contactor, IEC operating current Ith (AC1) = 1250A, AC coil, 220...240VAC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC coil 50/60Hz
Rated coil voltage [V]:
220...240
IEC operating current Ith (AC1) [A]:
1250
Type of built-in auxiliary contacts:
2NO+4NC
Type of mounting:
Screw
Order code11B1250424220
Weight [g]57500
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]672X362X290
Volume [cm³]70546
Bar code [EAN13]8013975045312
HS Code85365080

8548.03 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
