View larger
Images are for illustrative purposes only. Please refer to data sheet for details

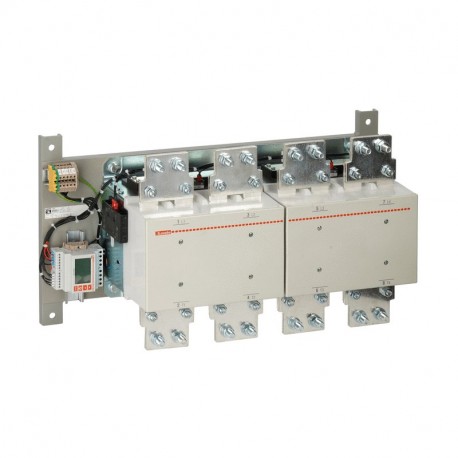

11B1250424110 B1250424110 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 1250A, AC/DC COIL, 110..
11B1250424110
B1250424110
LOVATO ELECTRIC
1 Pcs.
FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 1250A, AC/DC COIL, 110…125VAC/DC
Contactor IV 1250A AC1 B1250.4.24-110V AC/DC
Four-pole contactor, IEC operating current Ith (AC1) = 1250A, AC coil, 110...125VAC
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲11B1250424110
Four-pole contactor, IEC operating current Ith (AC1) = 1250A, AC coil, 110...125VAC
Technical specifications
- Type of product:
- Contactors
- Number of poles:
- 4
- Type of coil:
- AC coil 50/60Hz
- Rated coil voltage [V]:
- 110
- IEC operating current Ith (AC1) [A]:
- 1250
- Type of built-in auxiliary contacts:
- 2NO+4NC
- Type of mounting:
- Screw
| Order code | 11B1250424110 |
|---|---|
| Weight [g] | 57500 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 672X362X290 |
| Volume [cm³] | 70546 |
| Bar code [EAN13] | 8013975075135 |
| HS Code | 85365080 |
8548.03 £
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated control supply voltage DC (EF003980) | 110 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 110 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 110 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 1250 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 4 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 4 |
