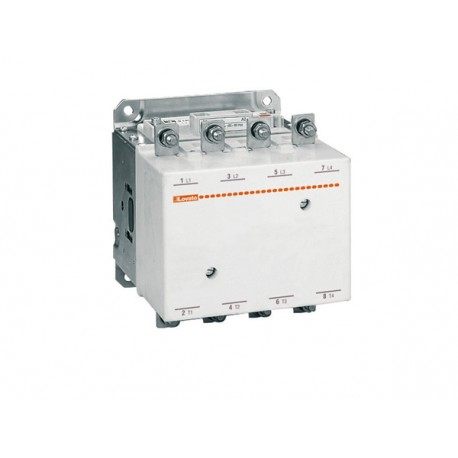

LOVATO ELECTRIC 11B31040048 11B31040048 B31040048 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 450A, AC/DC COIL, 48VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B31040048 B31040048 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 450A, AC/DC COIL, 48VAC/DC

11B31040048

B31040048

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 450A, AC/DC COIL, 48VAC/DC 4P CONTACTOR B310. 4 00 48V Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 48VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Lovato Electric 11B31040048 four-pole contactor is an electromechanical switching device utilized heavily in industrial environments for controlling heavy electrical loads, motors, and heating systems through remote signals. It securely links high-current power circuits while isolating low-voltage control circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 110 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 450 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 320 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 170 kW

More info

▲

11B31040048

Four-pole contactor, IEC operating current Ith (AC1) = 450A, AC/DC coil, 48VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Rated coil voltage [V]:
48
IEC operating current Ith (AC1) [A]:
450
IEC operating current and power Ie (AC3) 400V [A/Kw]:
320A / 170Kw
UL/CSA horsepower ratings 480V [HP]:
250
Type of mounting:
Screw
Order code11B31040048
Weight [g]11100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]208X196X227
Volume [cm³]9254.336
Bar code [EAN13]8013975075258
HS Code85365080

2637.25 £
