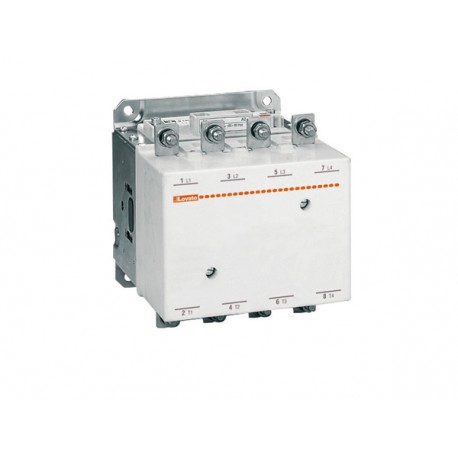

LOVATO ELECTRIC 11B25040024 11B25040024 B25040024 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 350A, AC/DC COIL, 24VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B25040024 B25040024 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 350A, AC/DC COIL, 24VAC/DC

11B25040024

B25040024

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 350A, AC/DC COIL, 24VAC/DC 4P CONTACTOR B250.4.00 24V Four-pole contactor, IEC operating current Ith (AC1) = 350A, AC/DC coil, 24VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 11B25040024 four-pole contactor is engineered for high-capacity electrical power distribution, heavy industrial motor control, and large resistive load switching within automated infrastructure. It guarantees exceptional operational durability.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 24 V
  • Rated control supply voltage AC 60 Hz (EF003979): 24 V
  • Rated control supply voltage AC 50 Hz (EF003978): 24 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 92 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 350 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 265 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 140 kW

More info

▲

11B25040024

Four-pole contactor, IEC operating current Ith (AC1) = 350A, AC/DC coil, 24VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Type of mounting:
Screw
Order code11B25040024
Weight [g]11370
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]208X196X227
Volume [cm³]9254.336
Bar code [EAN13]8013975026472
HS Code85365080
