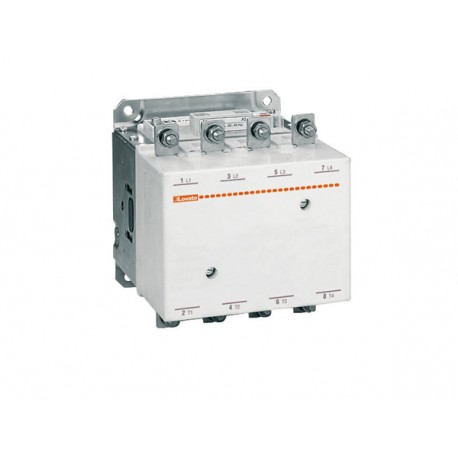

LOVATO ELECTRIC 11B18040048 11B18040048 B18040048 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 275A, AC/DC COIL, 48VAC/DC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B18040048 B18040048 LOVATO FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) 275A, AC/DC COIL, 48VAC/DC

11B18040048

B18040048

LOVATO ELECTRIC

1 Pcs.

FOUR-POLE CONTACTOR, IEC OPERATING CURRENT ITH (AC1) = 275A, AC/DC COIL, 48VAC/DC 4P CONTACTOR B180.4.00 48V Four-pole contactor, IEC operating current Ith (AC1) = 275A, AC/DC coil, 48VAC/DC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for demanding industrial environments, the Lovato Electric four-pole contactor, part 11B18040048, delivers high-current switching capability for multi-phase electrical systems. Such heavy-duty contactors are commonly utilized to control large motors, distribution transformers, and resistive power networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating (EF008242): AC/DC
  • Type of electrical connection of main circuit (EF006819): Bolt connection
  • Rated control supply voltage DC (EF003980): 48 V
  • Rated control supply voltage AC 60 Hz (EF003979): 48 V
  • Rated control supply voltage AC 50 Hz (EF003978): 48 V
  • Modular version (EF001126): No
  • Rated operation current Ie at AC-4, 400 V (EF008495): 65 A
  • Rated operation current Ie at AC-1, 400 V (EF001393): 275 A
  • Rated operation current Ie at AC-3, 400 V (EF001392): 185 A
  • Number of normally open contacts as main contact (EF001374): 4
  • Rated operation power at AC-3, 400 V (EF001364): 100 kW

More info

▲

11B18040048

Four-pole contactor, IEC operating current Ith (AC1) = 275A, AC/DC coil, 48VAC/DC

Technical specifications

Type of product:
Contactors
Number of poles:
4
Type of coil:
AC/DC coil
Type of mounting:
Screw
Order code11B18040048
Weight [g]6250
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]173X163X195
Volume [cm³]5498.805
Bar code [EAN13]8013975026250
HS Code85365080

1243.3 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
